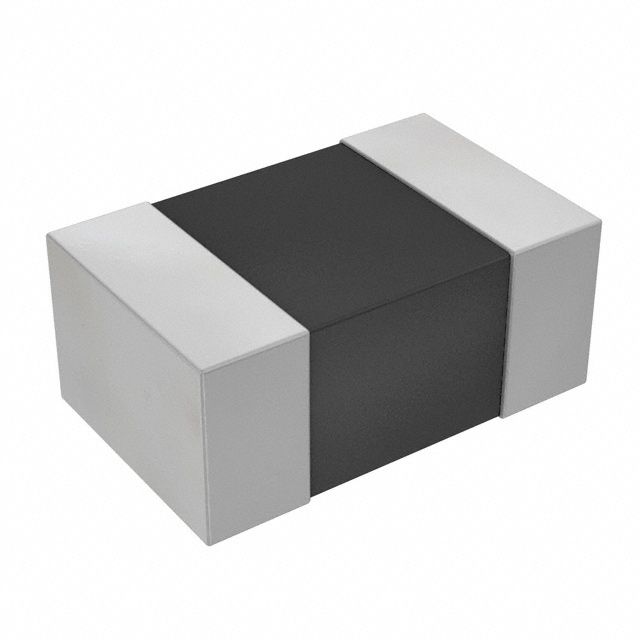

AIML-0805HC-220M-T
FIXED IND 22UH 300MA 700MOHM SMDManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More
Abracon LLC AIML-0805HC series multilayer inductor, part number AIML-0805HC-220M-T. This shielded inductor features 22 µH inductance with a ±20% tolerance, tested at 1 MHz. It offers a DC resistance of 700 mOhm and a current rating of 300 mA, with a saturation current (Isat) of 40 mA. The component is constructed with a ferrite core and measures 0.079" L x 0.049" W (2.00mm x 1.25mm) in an 0805 (2012 Metric) package. Its height is a maximum of 0.049" (1.25mm). Operating temperature range is -55°C to 125°C. This surface mount component is supplied on tape and reel (TR) and is suitable for applications in consumer electronics and telecommunications.
Additional Information
Series: AIML-0805HCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.079"" L x 0.049"" W (2.00mm x 1.25mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Multilayer |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 700mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 18MHz |
| Ratings | - |
| Current - Saturation (Isat) | 40mA |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 1 MHz |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.049"" (1.25mm) |
| Inductance | 22 µH |
| Current Rating (Amps) | 300 mA |
