AIMC-0201-6N8S-T
FIXED IND 6.8NH 200MA 650MOHM SMManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More
Abracon LLC AIMC-0201 6.8 nH unshielded multilayer inductor, part number AIMC-0201-6N8S-T. This component features a 6.8 nH inductance with a ±0.3 nH tolerance, tested at 100 MHz. It offers a current rating of 200 mA and a maximum DC resistance of 650 mOhm. The inductor exhibits a Q factor of 5 at 100 MHz and a self-resonant frequency of 6 GHz. Constructed with a ceramic core, it is designed for surface mount applications within the 0201 (0603 Metric) package size, measuring 0.024" L x 0.012" W (0.60mm x 0.30mm) and a maximum seated height of 0.014" (0.35mm). Operating temperature range is -55°C to 125°C. This component is suitable for applications in mobile devices, RF circuits, and signal filtering. Supplied on Tape & Reel (TR).
Additional Information
Series: AIMC-0201RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±0.3nH |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0201 (0603 Metric) |
| Size / Dimension | 0.024"" L x 0.012"" W (0.60mm x 0.30mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Multilayer |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 650mOhm Max |
| Q @ Freq | 5 @ 100MHz |
| Frequency - Self Resonant | 6GHz |
| Ratings | - |
| Current - Saturation (Isat) | - |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 100 MHz |
| Supplier Device Package | 0201 (0603 Metric) |
| Height - Seated (Max) | 0.014"" (0.35mm) |
| Inductance | 6.8 nH |
| Current Rating (Amps) | 200 mA |
Request a Quote
Clients Also Buy

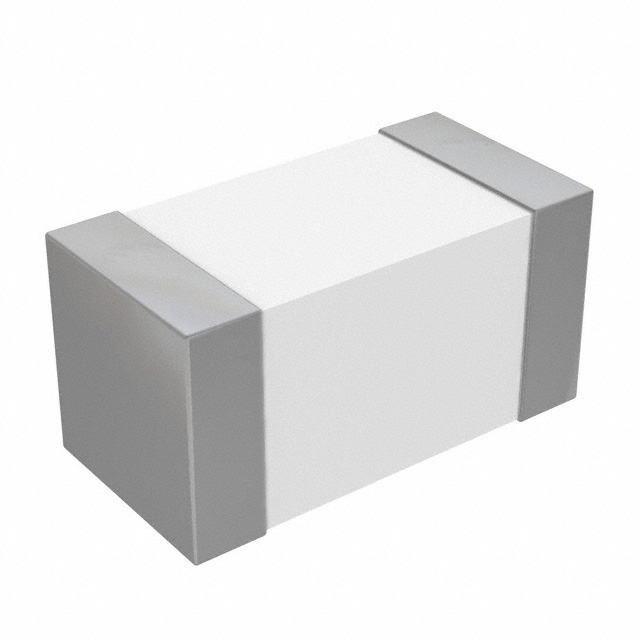

AIMC-0201-2N7S-T
