AIAP-02-3R9M
FIXED IND 3.9UH 7.3A 19 MOHM THManufacturer: Abracon LLC
Categories: Fixed Inductors
Quality Control: Learn More

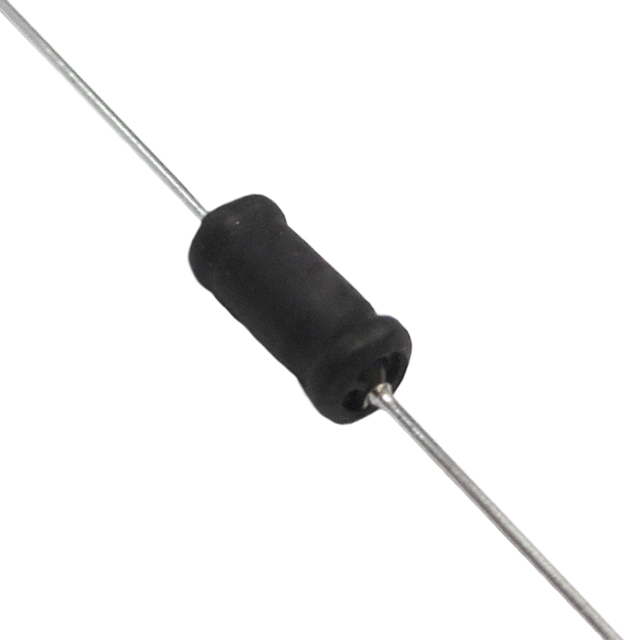

Abracon LLC AIAP-02-3R9M is a 3.9 µH unshielded wirewound inductor from the AIAP-02 series. This component features a DC resistance of 19mOhm maximum and a current rating of 7.3 A. Its axial package measures 0.252 inches in diameter by 0.551 inches in length. Designed for through-hole mounting, this inductor operates within a temperature range of -40°C to 85°C. The AIAP-02-3R9M is suitable for applications in power management and industrial control systems.
Additional Information
Series: AIAP-02RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Packaging | Bulk |
| Package / Case | Axial |
| Size / Dimension | 0.252"" Dia x 0.551"" L (6.40mm x 14.00mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) | 19mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | - |
| Material - Core | - |
| Inductance Frequency - Test | 1 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | - |
| Inductance | 3.9 µH |
| Current Rating (Amps) | 7.3 A |
