ABSM2-6.000MHZ-4-T
CRYSTAL 6.0000MHZ 18PF SMDManufacturer: Abracon LLC
Categories: Crystals
Quality Control: Learn More
Abracon LLC ABSM2 series crystal, part number ABSM2-6-000MHZ-4-T, offers a fundamental frequency of 6 MHz with a frequency tolerance of ±30ppm and a frequency stability of ±50ppm over an operating temperature range of -10°C to 60°C. This surface mount component features an 18pF load capacitance and an ESR of 100 Ohms. The crystal is housed in a 4-SOJ package with a 9.40mm pitch and dimensions of 0.492" L x 0.181" W (12.50mm x 4.60mm), with a maximum seated height of 0.146" (3.70mm). It is supplied on tape and reel (TR). This component is utilized in various applications, including consumer electronics and industrial control systems.
Additional Information
Series: ABSM2RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SOJ, 9.40mm pitch |
| Load Capacitance | 18pF |
| Size / Dimension | 0.492"" L x 0.181"" W (12.50mm x 4.60mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -10°C ~ 60°C |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±30ppm |
| Operating Mode | Fundamental |
| Ratings | - |
| Height - Seated (Max) | 0.146"" (3.70mm) |
| ESR (Equivalent Series Resistance) | 100 Ohms |
| Frequency | 6 MHz |
Request a Quote
Clients Also Buy

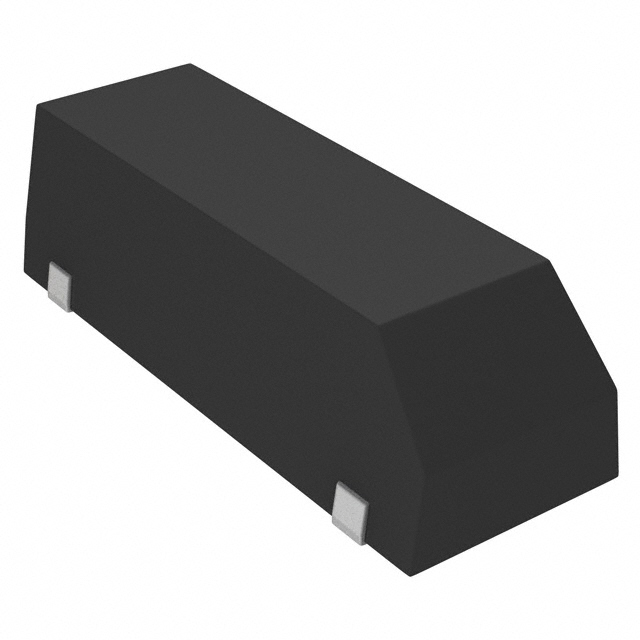

ABSM2-14.7456MHZ-4-T
