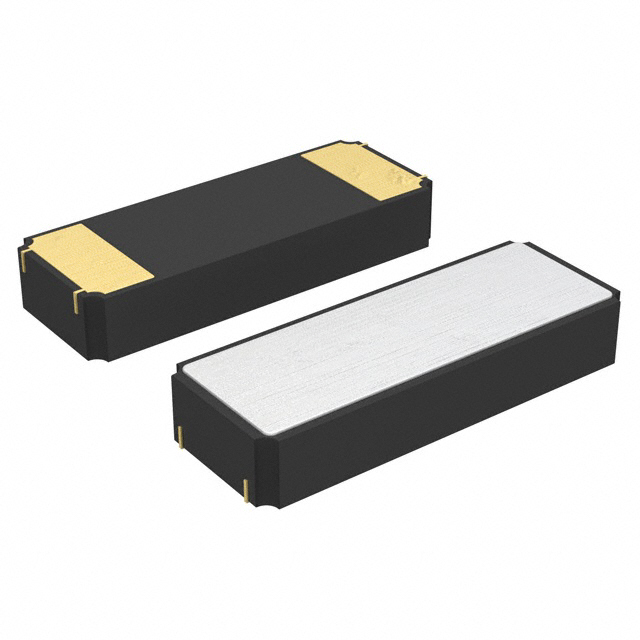

ABS10-32.768KHZ-1-T
CRYSTAL 32.7680KHZ 12.5PF SMDManufacturer: Abracon LLC
Categories: Crystals
Quality Control: Learn More
The Abracon LLC ABS10 series kHz Crystal, part number ABS10-32-768KHZ-1-T, is a fundamental mode tuning fork crystal with a frequency of 32.768 kHz. It features a tight frequency tolerance of ±10ppm and a load capacitance of 12.5pF. This surface mount component, housed in a 2-SMD, No Lead package, has an Equivalent Series Resistance (ESR) of 70 kOhms. Its dimensions are 4.90mm x 1.80mm with a maximum seated height of 1.00mm. The operating temperature range is -40°C to 85°C. This component is suitable for applications in consumer electronics, industrial systems, and automotive electronics where precise timekeeping is critical. It is supplied in a Tape & Reel (TR) package.
Additional Information
Series: ABS10RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Load Capacitance | 12.5pF |
| Size / Dimension | 0.190"" L x 0.070"" W (4.90mm x 1.80mm) |
| Mounting Type | Surface Mount |
| Type | kHz Crystal (Tuning Fork) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | - |
| Frequency Tolerance | ±10ppm |
| Operating Mode | Fundamental |
| Ratings | - |
| Height - Seated (Max) | 0.039"" (1.00mm) |
| ESR (Equivalent Series Resistance) | 70 kOhms |
| Frequency | 32.768 kHz |
