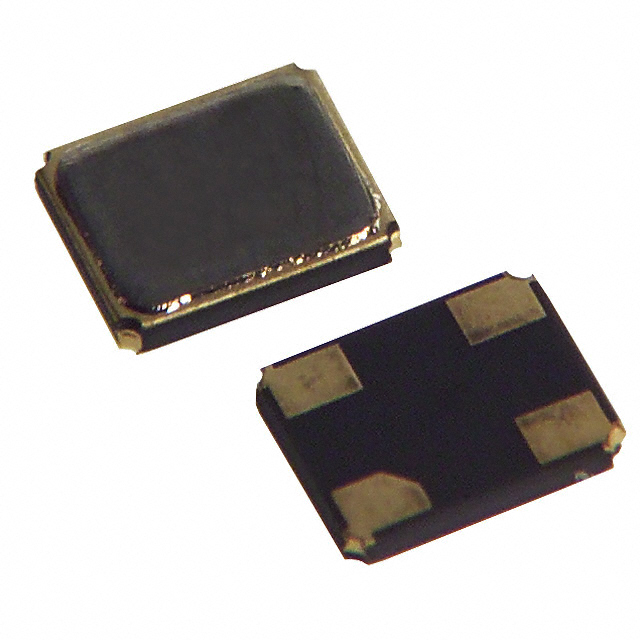

ABM9-16.000MHZ-10-D-1U-T
CRYSTAL 16.0000MHZ 10PF SMDManufacturer: Abracon LLC
Categories: Crystals
Quality Control: Learn More
Abracon LLC ABM9 series crystal oscillator, part number ABM9-16-000MHZ-10-D-1U-T. This fundamental mode MHz crystal operates at 16 MHz with a frequency tolerance of ±10ppm and a frequency stability of ±20ppm over an operating temperature range of -40°C to 85°C. It features a load capacitance of 10pF and an Equivalent Series Resistance (ESR) of 80 Ohms. The component is housed in a 4-SMD, No Lead package with dimensions of 0.157" L x 0.098" W (4.00mm x 2.50mm) and a seated height of 0.031" (0.80mm). Mounting is surface mount. This device is commonly utilized in telecommunications, consumer electronics, and industrial automation applications. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: ABM9RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Load Capacitance | 10pF |
| Size / Dimension | 0.157"" L x 0.098"" W (4.00mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±20ppm |
| Frequency Tolerance | ±10ppm |
| Operating Mode | Fundamental |
| Ratings | - |
| Height - Seated (Max) | 0.031"" (0.80mm) |
| ESR (Equivalent Series Resistance) | 80 Ohms |
| Frequency | 16 MHz |
