ABM8G-20.000MHZ-18-D2Y-T
CRYSTAL 20.0000MHZ 18PF SMDManufacturer: Abracon LLC
Categories: Crystals
Quality Control: Learn More
20 MHz ±20ppm Crystal 18pF 80 Ohms 4-SMD, No Lead
Additional Information
Series: ABM8GRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Load Capacitance | 18pF |
| Size / Dimension | 0.126"" L x 0.098"" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±30ppm |
| Frequency Tolerance | ±20ppm |
| Operating Mode | Fundamental |
| Ratings | - |
| Height - Seated (Max) | 0.039"" (1.00mm) |
| ESR (Equivalent Series Resistance) | 80 Ohms |
| Frequency | 20 MHz |
Request a Quote
Clients Also Buy
ABM8G-24.000MHZ-18-D2Y-T
CRYSTAL 24.0000MHZ 18PF SMD
ABM8G-25.000MHZ-B4Y-T3
CRYSTAL 25.0000MHZ 10PF SMD

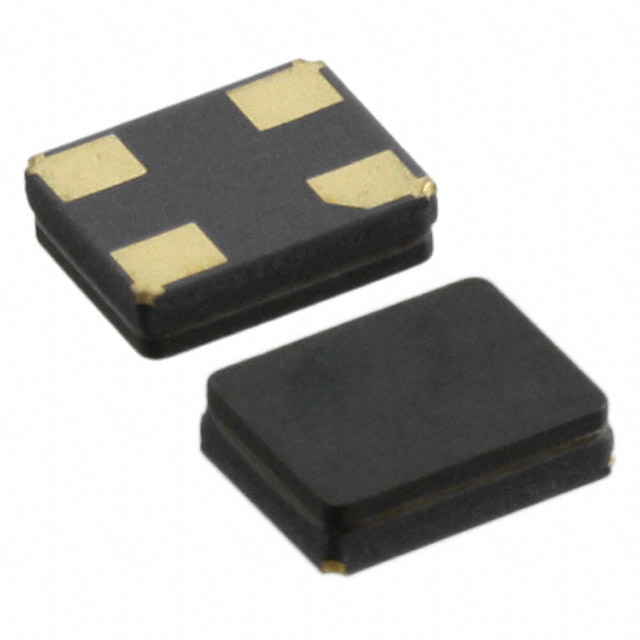

ABM8G-10.000MHZ-4Y-T3
