ABM7-9.81563MHZ-10-R50-J4Q-T
CRYSTAL 9.81563MHZ 10PF SMDManufacturer: Abracon LLC
Categories: Crystals
Quality Control: Learn More
Abracon LLC ABM7 series crystal, part number ABM7-9-81563MHZ-10-R50-J4Q-T, offers a fundamental mode of operation at 9.81563 MHz. This surface mount component features a load capacitance of 10pF and an Equivalent Series Resistance (ESR) of 100 Ohms. The frequency tolerance is specified at ±30ppm, with a frequency stability of ±100ppm over an operating temperature range of -40°C to 105°C. Its compact 2-SMD, No Lead package measures 6.00mm x 3.50mm with a maximum seated height of 1.40mm. This MHz Crystal is commonly utilized in telecommunications, consumer electronics, and industrial control systems. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: ABM7RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Load Capacitance | 10pF |
| Size / Dimension | 0.236"" L x 0.138"" W (6.00mm x 3.50mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -40°C ~ 105°C |
| Frequency Stability | ±100ppm |
| Frequency Tolerance | ±30ppm |
| Operating Mode | Fundamental |
| Ratings | - |
| Height - Seated (Max) | 0.055"" (1.40mm) |
| ESR (Equivalent Series Resistance) | 100 Ohms |
| Frequency | 9.81563 MHz |
Request a Quote
Clients Also Buy

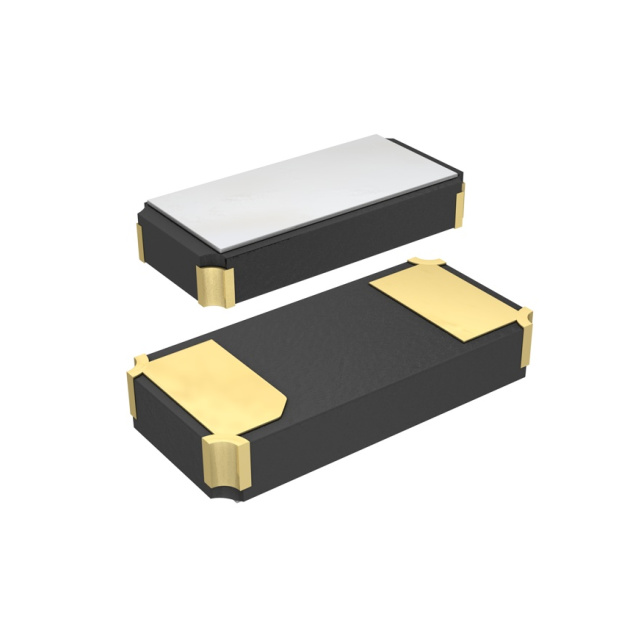

ABM7-12.000MHZ-D4-T
CRYSTAL 12.0000MHZ 18PF SMD

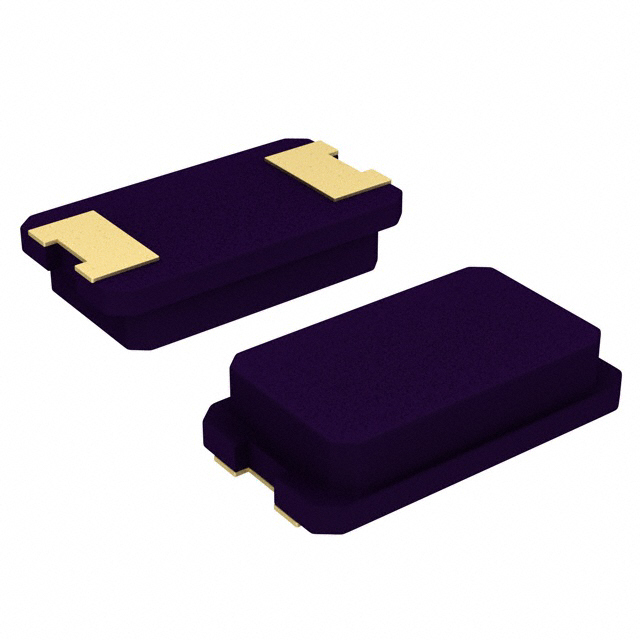

ABM7-13.52127MHZ-10-R50-J4Q-T
