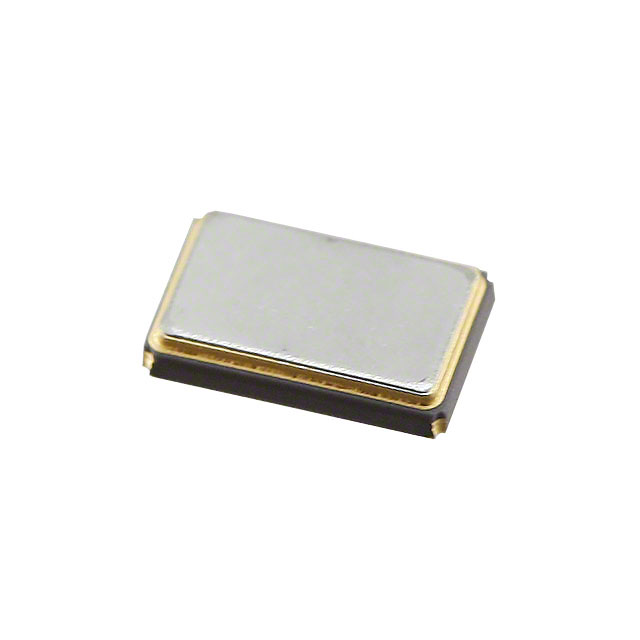

ABM3X-101-24.000MHZ-T
CRYSTAL 24.0000MHZ 10PF SMDManufacturer: Abracon LLC
Categories: Crystals
Quality Control: Learn More
24 MHz ±10ppm Crystal 10pF 30 Ohms 4-SMD, No Lead
Additional Information
Series: ABM3XRoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Load Capacitance | 10pF |
| Size / Dimension | 0.197"" L x 0.126"" W (5.00mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -40°C ~ 125°C |
| Frequency Stability | ±25ppm |
| Frequency Tolerance | ±10ppm |
| Operating Mode | Fundamental |
| Ratings | - |
| Height - Seated (Max) | 0.041"" (1.05mm) |
| ESR (Equivalent Series Resistance) | 30 Ohms |
| Frequency | 24 MHz |
