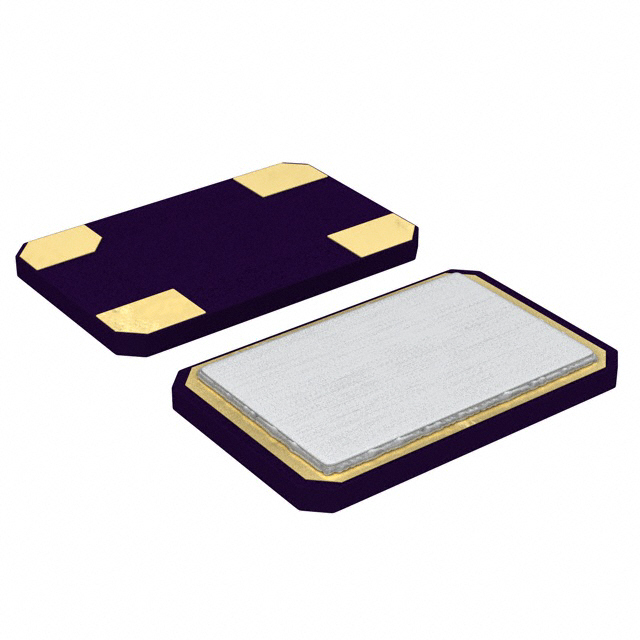

ABM3B-24.576MHZ-20-E-T
CRYSTAL 24.5760MHZ 20PF SMDManufacturer: Abracon LLC
Categories: Crystals
Quality Control: Learn More
24.576 MHz ±50ppm Crystal 20pF 50 Ohms 4-SMD, No Lead
Additional Information
Series: ABM3BRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 4-SMD, No Lead |
| Load Capacitance | 20pF |
| Size / Dimension | 0.197"" L x 0.126"" W (5.00mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | 0°C ~ 70°C |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±50ppm |
| Operating Mode | Fundamental |
| Ratings | - |
| Height - Seated (Max) | 0.043"" (1.10mm) |
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Frequency | 24.576 MHz |
