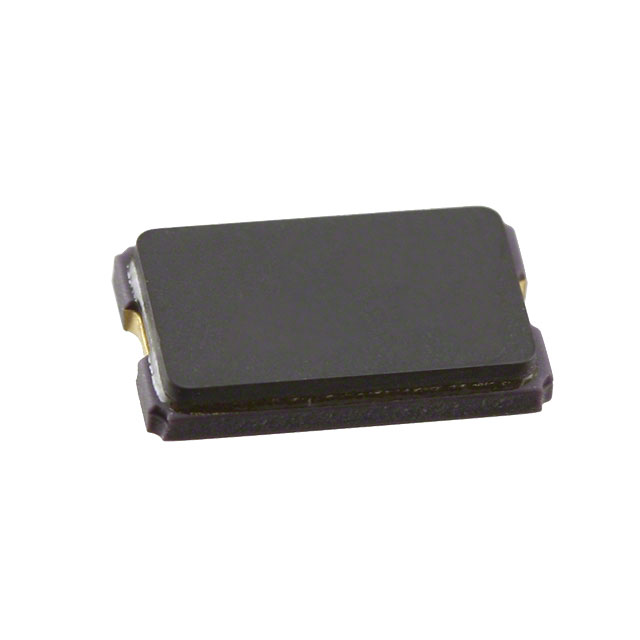

ABM2-8.192MHZ-D4Y-T
CRYSTAL 8.1920MHZ 18PF SMDManufacturer: Abracon LLC
Categories: Crystals
Quality Control: Learn More
The Abracon LLC ABM2 series crystal oscillator, part number ABM2-8-192MHZ-D4Y-T, provides a fundamental frequency of 8.192 MHz with a tight frequency tolerance and stability of ±30ppm. Designed for surface mount applications, this component features a 2-SMD, No Lead package with a seated height of 0.081 inches (1.80mm) and dimensions of 0.315 inches by 0.177 inches (8.00mm x 4.50mm). It operates with a load capacitance of 18pF and an equivalent series resistance (ESR) of 100 Ohms. The operating temperature range is -40°C to 85°C. This MHz crystal is commonly utilized in consumer electronics and industrial control systems. It is supplied in Tape & Reel packaging.
Additional Information
Series: ABM2RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Load Capacitance | 18pF |
| Size / Dimension | 0.315"" L x 0.177"" W (8.00mm x 4.50mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±30ppm |
| Frequency Tolerance | ±30ppm |
| Operating Mode | Fundamental |
| Ratings | - |
| Height - Seated (Max) | 0.081"" (1.80mm) |
| ESR (Equivalent Series Resistance) | 100 Ohms |
| Frequency | 8.192 MHz |
