ABM11W-26.0000MHZ-8-R60-B1U-T3
CRYSTAL 26MHZ 8PF SMDManufacturer: Abracon LLC
Categories: Crystals
Quality Control: Learn More
Abracon LLC ABM11W series MHz Crystal, part number ABM11W-26-0000MHZ-8-R60-B1U-T3. This fundamental mode crystal operates at a frequency of 26 MHz with a frequency tolerance and stability of ±10ppm. It features a load capacitance of 8pF and an equivalent series resistance of 60 Ohms. The component is housed in a 4-SMD, No Lead package with dimensions of 2.00mm x 1.60mm and a maximum seated height of 0.50mm. Operating temperature range is -20°C to 70°C. This component is supplied on a tape and reel. Applications include consumer electronics and industrial control systems.
Additional Information
Series: ABM11WRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Load Capacitance | 8pF |
| Size / Dimension | 0.079"" L x 0.063"" W (2.00mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -20°C ~ 70°C |
| Frequency Stability | ±10ppm |
| Frequency Tolerance | ±10ppm |
| Operating Mode | Fundamental |
| Ratings | - |
| Height - Seated (Max) | 0.020"" (0.50mm) |
| ESR (Equivalent Series Resistance) | 60 Ohms |
| Frequency | 26 MHz |
Request a Quote
Clients Also Buy

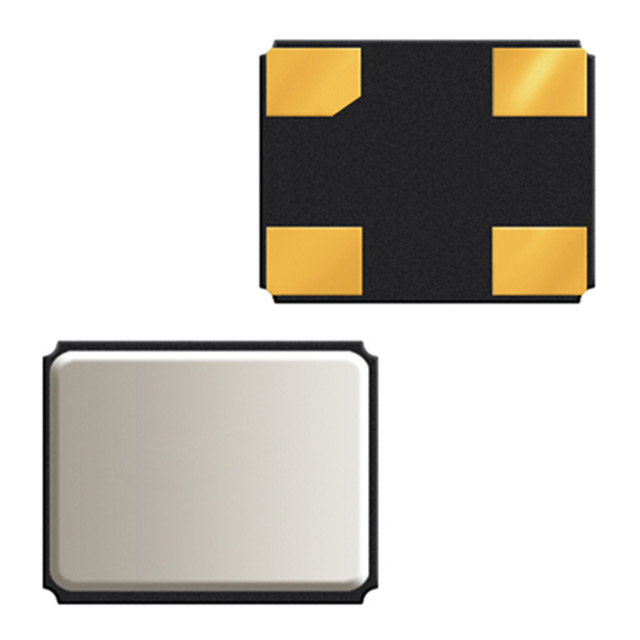

ABM11W-24.0000MHZ-6-B1U-T3
