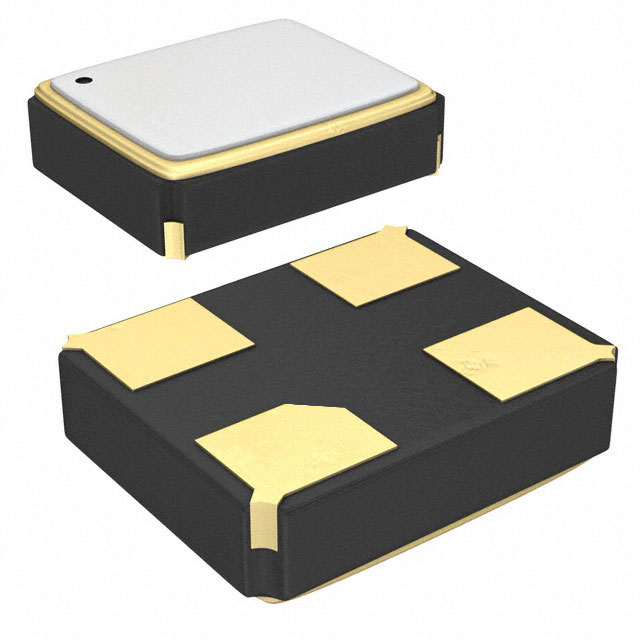

ABM10-165-38.400MHZ-T3
CRYSTAL 38.4000MHZ 10PF SMDManufacturer: Abracon LLC
Categories: Crystals
Quality Control: Learn More
Abracon LLC ABM10-165 series crystal, part number ABM10-165-38-400MHZ-T3, offers a fundamental operating mode frequency of 38.4 MHz. This 4-SMD, No Lead component features a load capacitance of 10pF and an equivalent series resistance (ESR) of 40 Ohms. Designed for surface mounting, it measures 2.50mm x 2.00mm with a maximum seated height of 0.50mm. The operating temperature range is -30°C to 85°C, with frequency stability rated at -15ppm, +20ppm. This component is commonly utilized in industrial automation, telecommunications, and consumer electronics applications. It is supplied in Tape & Reel packaging.
Additional Information
Series: ABM10-165RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Load Capacitance | 10pF |
| Size / Dimension | 0.098"" L x 0.079"" W (2.50mm x 2.00mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -30°C ~ 85°C |
| Frequency Stability | -15ppm, +20ppm |
| Frequency Tolerance | - |
| Operating Mode | Fundamental |
| Ratings | - |
| Height - Seated (Max) | 0.020"" (0.50mm) |
| ESR (Equivalent Series Resistance) | 40 Ohms |
| Frequency | 38.4 MHz |
