ABLS6M-26.000MHZ-D-2Y-T
CRYSTAL 26.0000MHZ 18PF SMDManufacturer: Abracon LLC
Categories: Crystals
Quality Control: Learn More

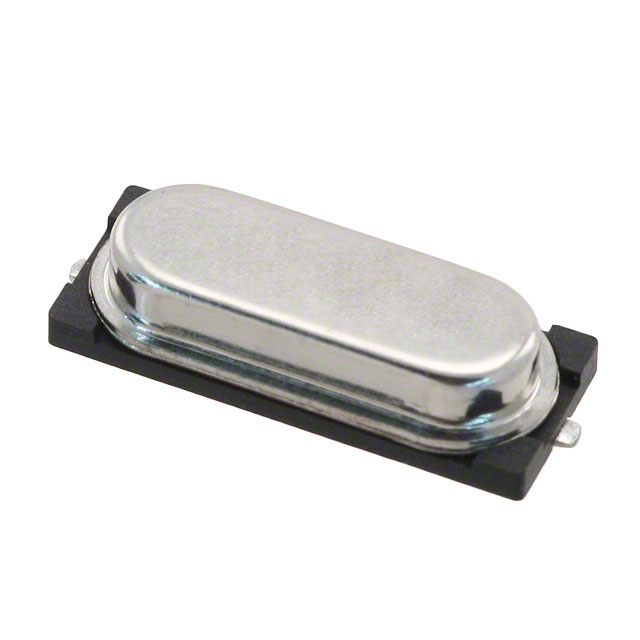

The Abracon LLC ABLS6M series crystal, part number ABLS6M-26-000MHZ-D-2Y-T, is a fundamental mode, surface-mount MHz crystal operating at 26.0000 MHz with a frequency tolerance of ±20ppm and frequency stability of ±30ppm over an operating temperature range of -40°C to 85°C. This component features an 18pF load capacitance and an Equivalent Series Resistance (ESR) of 60 Ohms. It is housed in a 2-SMD, Flat Lead package with dimensions of 6.00mm x 3.00mm and a seated height not exceeding 1.90mm. Supplied in tape and reel packaging, this crystal is suitable for applications in industrial, automotive, and consumer electronics.
Additional Information
Series: ABLS6MRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Flat Lead |
| Load Capacitance | 18pF |
| Size / Dimension | 0.236"" L x 0.118"" W (6.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±30ppm |
| Frequency Tolerance | ±20ppm |
| Operating Mode | Fundamental |
| Ratings | - |
| Height - Seated (Max) | 0.075"" (1.90mm) |
| ESR (Equivalent Series Resistance) | 60 Ohms |
| Frequency | 26 MHz |
