ABLS3-3.579545MHZ-D4Y-T
CRYSTAL 3.579545MHZ 18PF SMDManufacturer: Abracon LLC
Categories: Crystals
Quality Control: Learn More
Abracon LLC ABLS3 series MHz Crystal, part number ABLS3-3-579545MHZ-D4Y-T, offers a fundamental mode of operation at 3.579545 MHz with a frequency tolerance and stability of ±30ppm. This surface mount component features a load capacitance of 18pF and an ESR of 180 Ohms. Designed for operation across a temperature range of -40°C to 85°C, it is housed in an HC-49/US package with dimensions of 11.40mm x 4.70mm and a seated height of 2.60mm. The component is supplied on a tape and reel. This crystal is commonly utilized in consumer electronics and telecommunications applications.
Additional Information
Series: ABLS3RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | HC-49/US |
| Load Capacitance | 18pF |
| Size / Dimension | 0.449"" L x 0.185"" W (11.40mm x 4.70mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±30ppm |
| Frequency Tolerance | ±30ppm |
| Operating Mode | Fundamental |
| Ratings | - |
| Height - Seated (Max) | 0.102"" (2.60mm) |
| ESR (Equivalent Series Resistance) | 180 Ohms |
| Frequency | 3.579545 MHz |
Request a Quote
Clients Also Buy

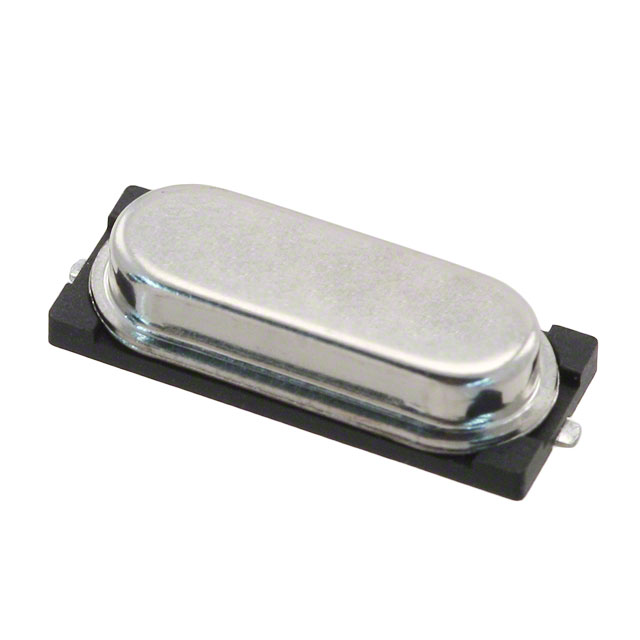

ABLS3-10.000MHZ-D4Y-T
