AB15T-32.768KHZ
CRYSTAL 32.7680KHZ 12.5PF THManufacturer: Abracon LLC
Categories: Crystals
Quality Control: Learn More

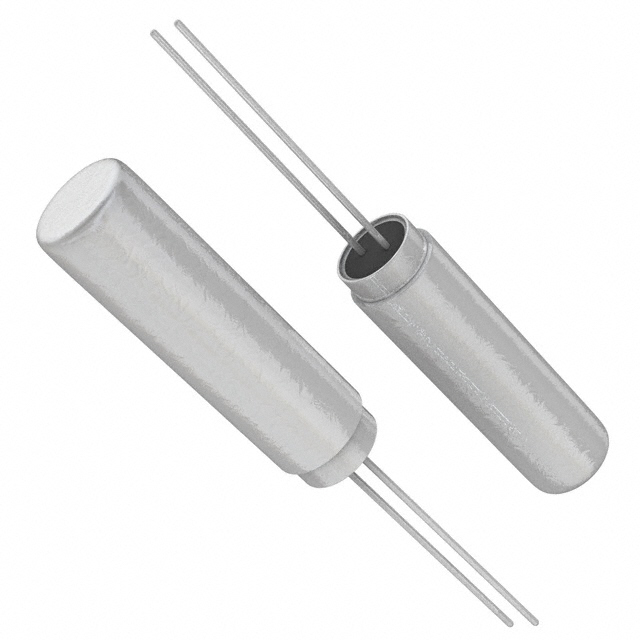

Abracon LLC AB15T series 32.768 kHz tuning fork crystal, part number AB15T-32-768KHZ. This fundamental mode crystal offers a frequency tolerance of ±20ppm at a load capacitance of 12.5pF. It features an Equivalent Series Resistance (ESR) of 40 kOhms and an operating temperature range of -20°C to 70°C. The component is housed in a cylindrical can with radial leads for through-hole mounting, with dimensions of 1.40mm x 5.00mm and a maximum seated height of 5.10mm. This crystal is commonly utilized in real-time clock (RTC) circuits, microcontrollers, and various timing applications across industrial, consumer, and automotive sectors.
Additional Information
Series: AB15TRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Cylindrical Can, Radial |
| Load Capacitance | 12.5pF |
| Size / Dimension | 0.055"" Dia x 0.197"" L (1.40mm x 5.00mm) |
| Mounting Type | Through Hole |
| Type | kHz Crystal (Tuning Fork) |
| Operating Temperature | -20°C ~ 70°C |
| Frequency Stability | - |
| Frequency Tolerance | ±20ppm |
| Operating Mode | Fundamental |
| Ratings | - |
| Height - Seated (Max) | 0.201"" (5.10mm) |
| ESR (Equivalent Series Resistance) | 40 kOhms |
| Frequency | 32.768 kHz |
