AAH-438-28.63636MHZ-T3

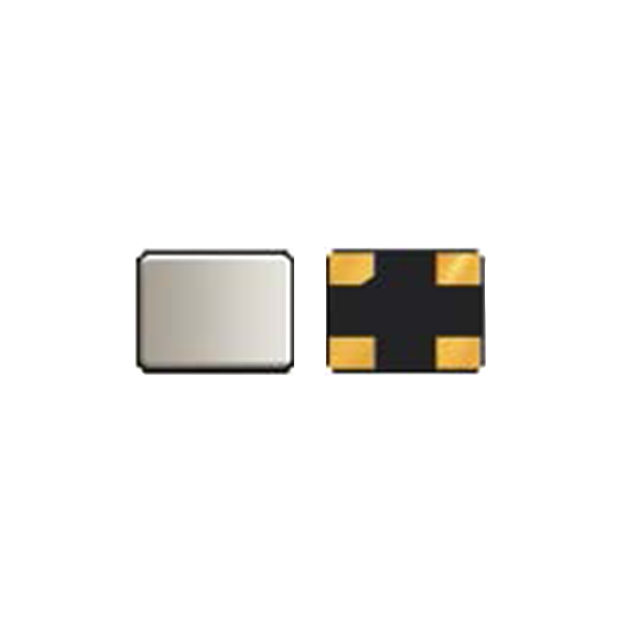

CRYSTAL 28.63636MHZ 12PF SMDManufacturer: Abracon LLC
Categories: Crystals
Quality Control: Learn More
Abracon LLC’s AAH series crystal, part number AAH-438-28-63636MHZ-T3, is a surface-mount component operating at a fundamental frequency of 28.63636 MHz. This crystal features a load capacitance of 12pF and an Equivalent Series Resistance (ESR) of 25 Ohms. The frequency tolerance is specified as ±20ppm, with a frequency stability of ±50ppm across an operating temperature range of -40°C to 125°C. The component is housed in a 4-SMD, No Lead package with dimensions of 3.20mm x 2.50mm and a maximum seated height of 0.80mm. This part is AEC-Q200 qualified, indicating its suitability for demanding automotive and industrial applications. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: AAHRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Load Capacitance | 12pF |
| Size / Dimension | 0.126"" L x 0.098"" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -40°C ~ 125°C |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±20ppm |
| Operating Mode | Fundamental |
| Ratings | AEC-Q200 |
| Height - Seated (Max) | 0.031"" (0.80mm) |
| ESR (Equivalent Series Resistance) | 25 Ohms |
| Frequency | 28.63636 MHz |
