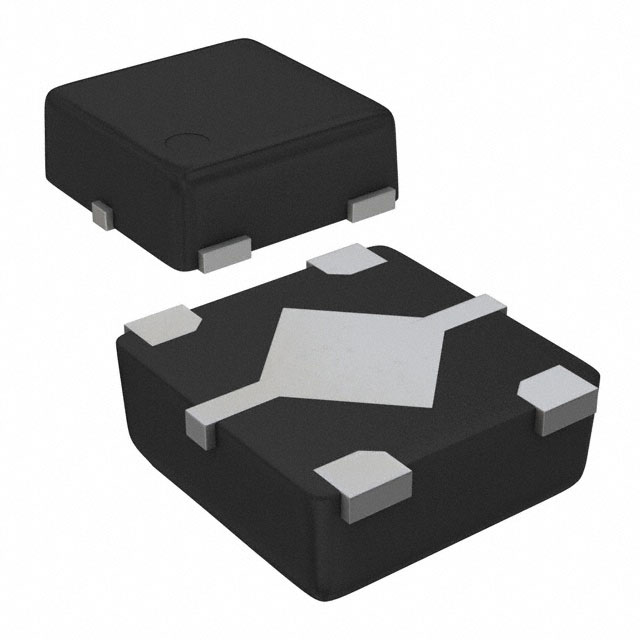

S-5844A85CEA-A4T2U3
THERMOSTAT OPEN DRAIN HSNT4-BManufacturer: ABLIC Inc.
Categories: Thermostats - Solid State
Quality Control: Learn More
ABLIC Inc. S-5844A series thermostat, part number S-5844A85CEA-A4T2U3, is a solid-state thermal switch. This device features an open-drain output configuration with a maximum output current of 10mA. The S-5844A85CEA-A4T2U3 operates over a supply voltage range of 1.65V to 5.5V, consuming a minimal quiescent current of 180nA. Its high-accuracy temperature sensing provides a trip point accuracy of ±2.5°C. Designed for surface mounting, it is supplied in a 4-pin HSNT-4-B package with tape and reel packaging. This component is suitable for applications requiring precise temperature monitoring and control in consumer electronics, industrial automation, and automotive systems. The operating temperature range is from -40°C to 125°C.
Additional Information
Series: S-5844ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Flat Leads Exposed Pad |
| Output Type | Open Drain |
| Mounting Type | Surface Mount |
| Accuracy | ±2.5°C |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 180nA |
| Current - Output (Max) | 10mA |
| Supplier Device Package | HSNT-4-B |
| Output Function | /OverTemp |
| Trip Temperature Threshold | - |
| Selectable Hysteresis | No |
| Voltage - Supply | 1.65 V ~ 5.5 V |
