S-8249AAG-M6T1U
BATTERY PROTECTION ICManufacturer: ABLIC Inc.
Categories: Supervisors
Quality Control: Learn More
ABLIC Inc. S-8249AAG-M6T1U is a dual-channel battery protection supervisor IC. This S-8249A series device features a push-pull, totem pole output and monitors two voltage thresholds, with a specific threshold set at 2.4V. The S-8249AAG-M6T1U is housed in a SOT-23-6 package and is designed for surface mount applications. Operating across a temperature range of -40°C to 85°C (TA), it offers an active high reset function. This component is commonly utilized in battery management systems and portable electronics where reliable voltage supervision is critical. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: S-8249ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Output | Push-Pull, Totem Pole |
| Type | Simple Reset/Power-On Reset |
| Reset | Active High |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Voltages Monitored | 2 |
| Reset Timeout | - |
| Voltage - Threshold | 2.4V |
| Supplier Device Package | SOT-23-6 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
S-8249AAW-M6T1U
BATTERY PROTECTION IC

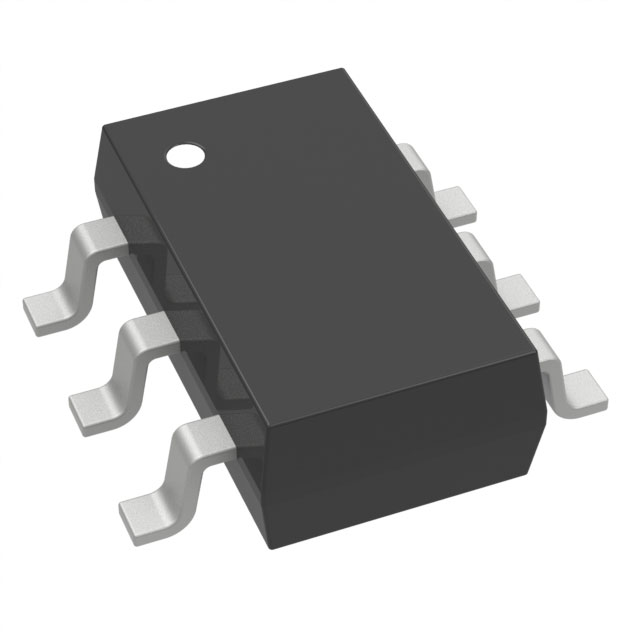

S-8249AAP-M6T1U
