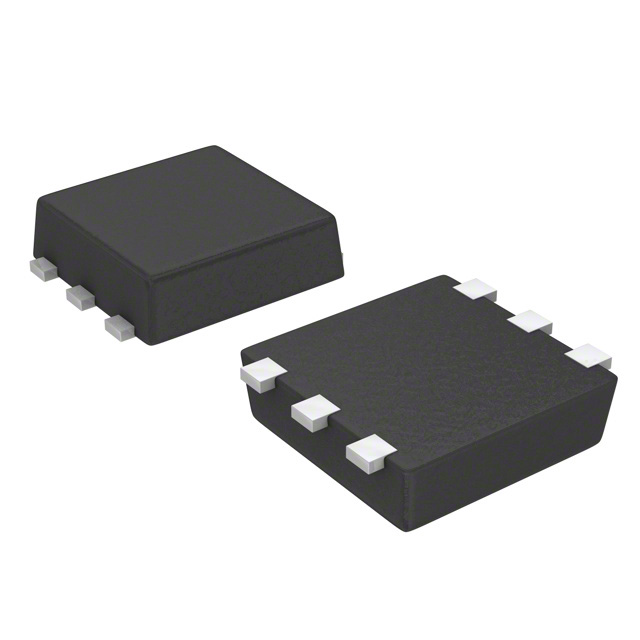

S-1721A122J-I6T1U
IC REG LIN 1.2/2.85V 150MA SNT6AManufacturer: ABLIC Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The ABLIC Inc. S-1721 series linear voltage regulator, part number S-1721A122J-I6T1U, offers dual fixed positive outputs of 1.2V and 2.85V, each capable of delivering up to 150mA. This LDO regulator features a low quiescent current of 1 µA and a supply current of 45 µA (max). The device includes an enable pin for control and protection features such as over-current protection. With a PSRR of 80dB (1kHz), it provides excellent power supply rejection. Input voltage range is up to 6.5V. The SNT-6A package ensures a compact footprint for surface mounting. Typical applications include portable electronics and battery-powered devices. Dropout voltage is 0.58V at 100mA for the 1.2V output and 0.23V at 100mA for the 2.85V output. This component operates within an ambient temperature range of -40°C to 85°C.
Additional Information
Series: S-1721RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, Flat Leads |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1 µA |
| Voltage - Input (Max) | 6.5V |
| Number of Regulators | 2 |
| Supplier Device Package | SNT-6A |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.2V, 2.85V |
| Control Features | Enable |
| PSRR | 80dB (1kHz), 75dB (1kHz) |
| Voltage Dropout (Max) | 0.58V @ 100mA, 0.23V @ 100mA |
| Protection Features | Over Current |
| Current - Supply (Max) | 45 µA |
