S-13R1G39-A4T2U3
IC REG LINEAR 3.9V 150MA HSNT4-BManufacturer: ABLIC Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

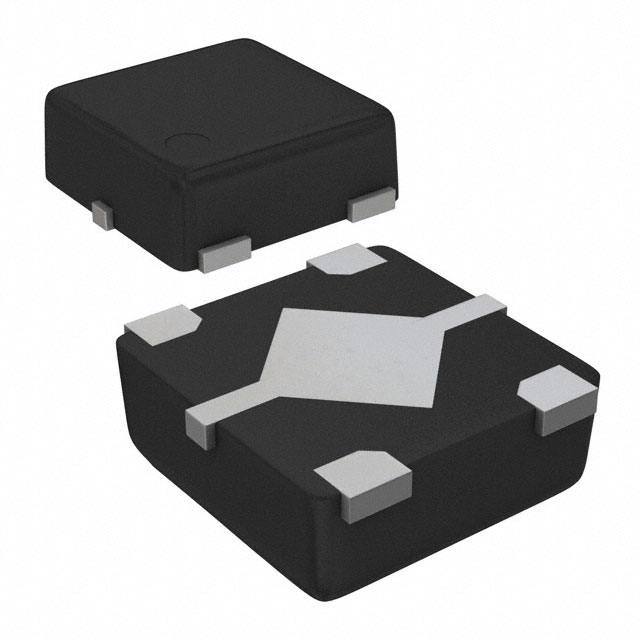

ABLIC Inc. presents the S-13R1 series linear voltage regulator, part number S-13R1G39-A4T2U3. This positive, fixed output regulator provides a stable 3.9V with an output current capability of 150mA. Designed for efficient operation, it features a low quiescent current of 1 µA and a supply current of 9 µA (max). The HSNT-4-B package offers a compact surface mount solution with an exposed pad for enhanced thermal performance. Key protection features include overcurrent, reverse current, and thermal shutdown. The device supports an input voltage range up to 5.5V, with a typical dropout voltage of 0.23V at 100mA. Its high Power Supply Rejection Ratio (PSRR) of 70dB at 1kHz makes it suitable for noise-sensitive applications, commonly found in consumer electronics and portable devices. The S-13R1G39-A4T2U3 is supplied on a Tape & Reel for automated assembly.
Additional Information
Series: S-13R1RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Flat Leads Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | HSNT-4-B |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.9V |
| Control Features | Enable |
| PSRR | 70dB (1kHz) |
| Voltage Dropout (Max) | 0.23V @ 100mA |
| Protection Features | Overcurrent, Reverse Current, Thermal Shutdown |
| Current - Supply (Max) | 9 µA |
