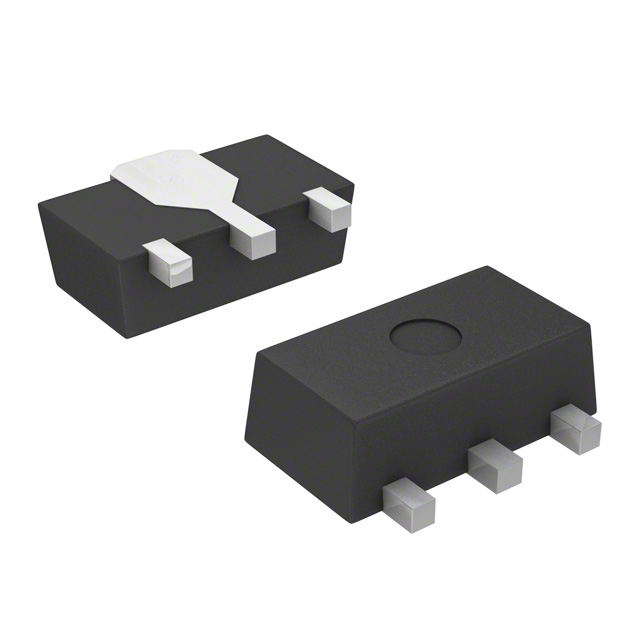

S-1206B33-U3T1G
IC REG LINEAR 3.3V 250MA SOT89-3Manufacturer: ABLIC Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
ABLIC Inc. S-1206 series linear voltage regulator, part number S-1206B33-U3T1G, offers a fixed 3.3V positive output with a maximum output current of 250mA. This device features a low quiescent current of 1.5 µA, making it suitable for battery-powered applications. The S-1206B33-U3T1G operates with an input voltage range up to 6.5V and a low dropout voltage of 0.23V at 100mA. Protection features include over-current protection. The component is housed in a SOT-89-3 (TO-243AA) surface-mount package and is supplied on tape and reel. This regulator is commonly utilized in consumer electronics, industrial control, and portable devices.
Additional Information
Series: S-1206RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 250mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1.5 µA |
| Voltage - Input (Max) | 6.5V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-89-3 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | - |
| PSRR | - |
| Voltage Dropout (Max) | 0.23V @ 100mA |
| Protection Features | Over Current |
