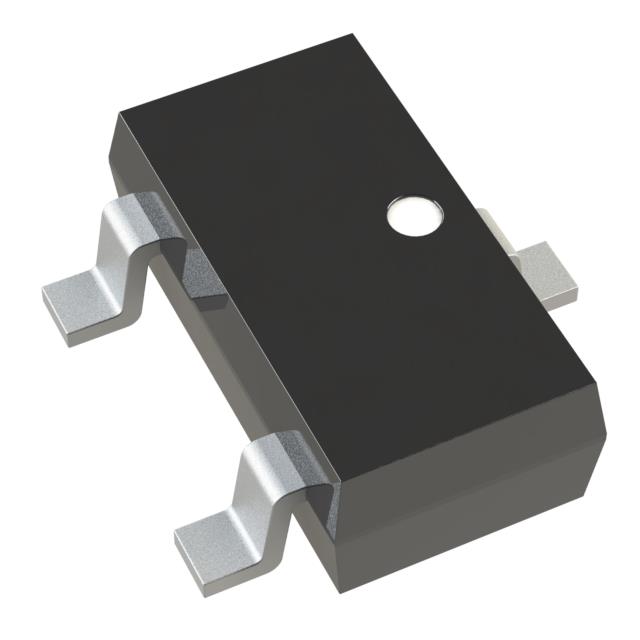

S-1206B23-M3T1G
IC REG LINEAR 2.3V 250MA SOT23-3Manufacturer: ABLIC Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
ABLIC Inc. S-1206 series linear voltage regulator, part number S-1206B23-M3T1G. This positive fixed output regulator provides a stable 2.3V with a maximum output current of 250mA. Featuring a low quiescent current of 1.5 µA, it is suitable for power-sensitive applications. The device offers over-current protection and a dropout voltage of 0.36V at 100mA. Packaged in a compact SOT-23-3 (TO-236-3, SC-59) surface-mount format, it is supplied on tape and reel. The operating temperature range is -40°C to 85°C (TA). This component finds application in areas such as portable electronics and battery-powered devices.
Additional Information
Series: S-1206RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 250mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1.5 µA |
| Voltage - Input (Max) | 6.5V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-23-3 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.3V |
| Control Features | - |
| PSRR | - |
| Voltage Dropout (Max) | 0.36V @ 100mA |
| Protection Features | Over Current |
