S-1200B33-M5T1G
IC REG LINEAR 3.3V 150MA SOT23-5Manufacturer: ABLIC Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
ABLIC Inc. S-1200 series linear voltage regulator, the S-1200B33-M5T1G, offers a fixed 3.3V positive output with a 150mA current capability. This SOT-23-5 packaged device features a low quiescent current of 1 µA and a supply current of 40 µA (Max), making it suitable for power-sensitive applications. The input voltage range extends up to 10V, with a dropout voltage of 0.19V at 100mA. Integrated protection includes over-current limiting. The S-1200B33-M5T1G is commonly implemented in battery-powered devices, consumer electronics, and portable equipment. Its high power supply rejection ratio (PSRR) of 65dB at 1kHz ensures stable operation in noisy environments. Supplied on tape and reel (TR).
Additional Information
Series: S-1200RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1 µA |
| Voltage - Input (Max) | 10V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-23-5 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | Enable |
| PSRR | 65dB (1kHz) |
| Voltage Dropout (Max) | 0.19V @ 100mA |
| Protection Features | Over Current |
| Current - Supply (Max) | 40 µA |
Request a Quote
Clients Also Buy

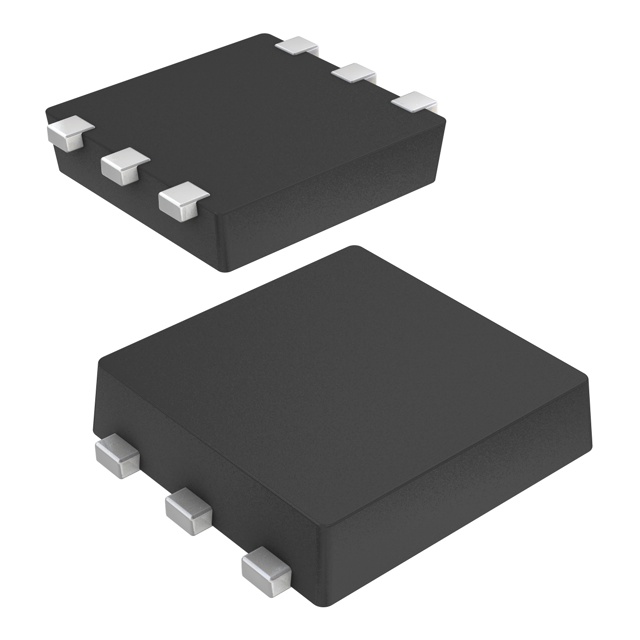

S-1200B33-I6T2U
