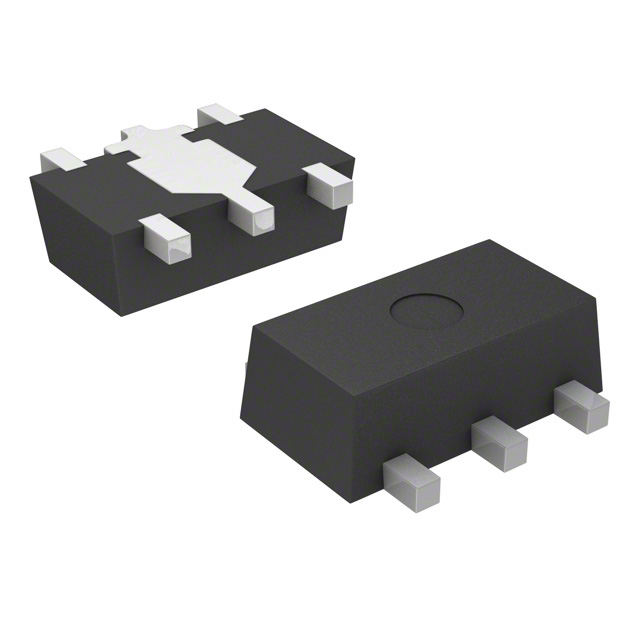

S-1131B52UC-N5LTFG
IC REG LINEAR 5.2V 300MA SOT89-5Manufacturer: ABLIC Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
ABLIC Inc. S-1131 series linear voltage regulator, part number S-1131B52UC-N5LTFG. This positive fixed output voltage regulator provides a 5.2V output with a maximum current of 300mA. Key specifications include a low quiescent current of 1 µA and a supply current of 65 µA (max). The input voltage range extends up to 6.5V. The voltage dropout is a mere 0.28V at 100mA. Featuring an Enable control pin and over-current protection, this device is housed in a SOT-89-5 package and supplied on tape and reel. The S-1131 series is commonly utilized in portable devices, power management for consumer electronics, and automotive applications. Its high Power Supply Rejection Ratio (PSRR) of 70dB at 1kHz makes it suitable for noise-sensitive applications.
Additional Information
Series: S-1131RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-89-5/6 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 300mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1 µA |
| Voltage - Input (Max) | 6.5V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-89-5 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5.2V |
| Control Features | Enable |
| PSRR | 70dB (1kHz) |
| Voltage Dropout (Max) | 0.28V @ 100mA |
| Protection Features | Over Current |
| Current - Supply (Max) | 65 µA |
