S-881300CPE-IPATFG
IC LED DRIVER RGLTR 23MA 10SONManufacturer: ABLIC Inc.
Categories: LED Drivers
Quality Control: Learn More
ABLIC Inc. S-881300CPE-IPATFG is a 3-output DC-DC regulator LED driver. This surface mount component utilizes a switched capacitor (charge pump) topology to achieve voltage conversion. It is designed to deliver a regulated 23mA per channel. The device operates with an input voltage range of 2.7V to 4.5V and features an internal switch for efficient operation at a frequency of 600kHz. The S-881300CPE-IPATFG is housed in a compact 10-SON (2.9x2.8) package, supplied on tape and reel. Its capabilities make it suitable for applications such as display backlighting. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SMD, Flat Leads |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 3 |
| Frequency | 600kHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 23mA |
| Internal Switch(s) | Yes |
| Topology | Switched Capacitor (Charge Pump) |
| Supplier Device Package | 10-SON (2.9x2.8) |
| Dimming | - |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 4.5V |
Request a Quote
Clients Also Buy

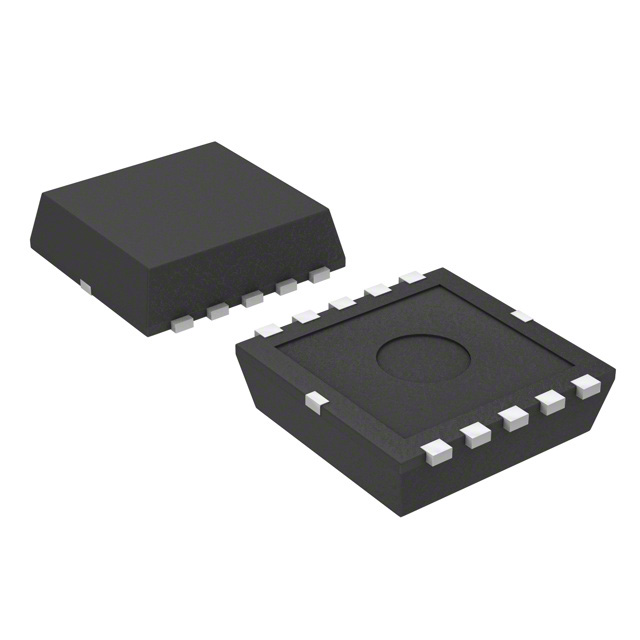

S-881300BPE-IOQTFG
