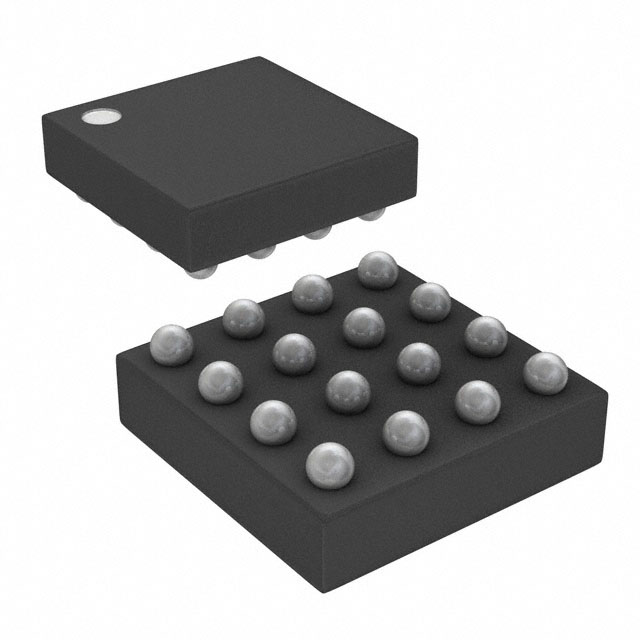

S-7760A4115-HCT1
IC XPNDR 400KHZ I2C 16WLPManufacturer: ABLIC Inc.
Categories: I/O Expanders
Quality Control: Learn More
ABLIC Inc. S-7760A4115-HCT1 is an 8-bit I/O expander featuring an I2C interface with a maximum clock frequency of 400 kHz. This device offers 8 general-purpose I/O pins configurable as either output or input, with open-drain output capabilities. It includes integrated EEPROM for configuration storage. The S-7760A4115-HCT1 operates within a voltage range of 2.3V to 4.5V and has an operating temperature range of -40°C to 85°C. The component is supplied in a 16-WLP-16A-C package, suitable for surface mounting. This I/O expander finds application in portable electronics, consumer devices, and industrial control systems where space-constrained designs require efficient I/O expansion.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | EEPROM |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-UFBGA, WLBGA |
| Output Type | Open Drain |
| Mounting Type | Surface Mount |
| Interface | I2C |
| Number of I/O | 8 |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.3V ~ 4.5V |
| Clock Frequency | 400 kHz |
| Interrupt Output | No |
| Supplier Device Package | WLP-16A-C |
| Current - Output Source/Sink | - |
| Programmable | Not Verified |
