S-8356M18BD-MED-TFG
IC REG CTRLR BOOST 6SNBManufacturer: ABLIC Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
The ABLIC Inc. S-8356M18BD-MED-TFG is a positive output, step-up DC-DC controller IC designed for boost regulator applications. This device operates with a wide supply voltage range of 0.9V to 10V and features a fixed switching frequency of 300kHz. The controller supports a maximum duty cycle of 78% and includes an enable control feature. It is built with a transistor driver output type and a single output phase. The S-8356M18BD-MED-TFG is housed in a 6-SNB (1.8x2.0) package, specifically a 6-VFDFN exposed pad, and is supplied in Tape & Reel (TR) packaging. This component is suitable for use in industrial and consumer electronics where efficient voltage conversion is required. The operating temperature range is -40°C to 85°C (TA).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

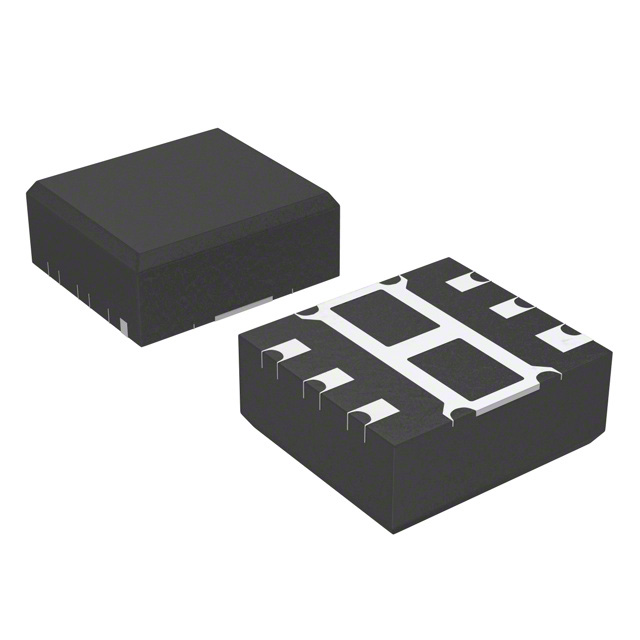

| Package / Case | 6-VFDFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz |
| Topology | Boost |
| Voltage - Supply (Vcc/Vdd) | 0.9V ~ 10V |
| Supplier Device Package | 6-SNB (1.8x2.0) |
| Synchronous Rectifier | No |
| Control Features | Enable |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 78% |
| Clock Sync | No |
| Number of Outputs | 1 |
