MP2-SS096-41S1-TR30
CONN RCPT FUTUREBUS+ 96P EDGE MTManufacturer: 3M
Categories: Specialized
Quality Control: Learn More

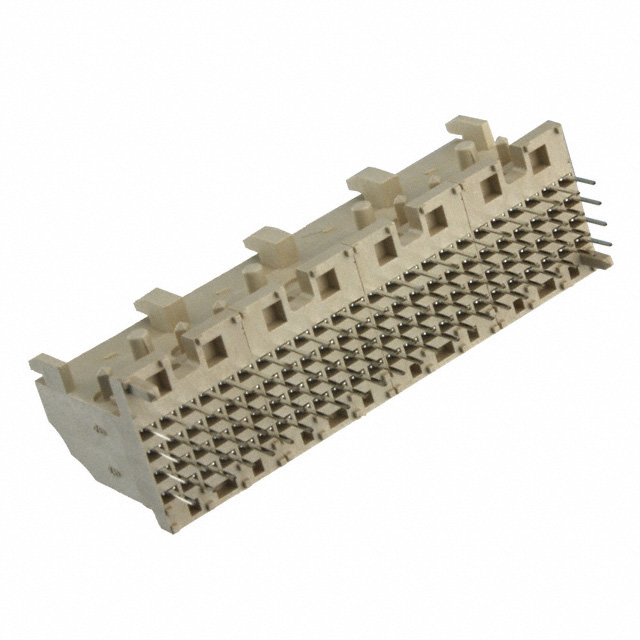

The 3M MetPak™ MP2 series connector, part number MP2-SS096-41S1-TR30, is a 96-position right-angle receptacle designed for board edge mounting with through-hole termination. This beige, female socket connector features a Futurebus+® style interface and is suitable for demanding backplane applications. It utilizes gold plating with a 3.00µin (0.076µm) thickness for enhanced conductivity and durability. Key features include board guides and spacers for robust assembly. The 2.00mm pitch facilitates dense connector configurations. This component is commonly employed in telecommunications infrastructure, high-performance computing, and industrial automation systems. It is supplied in tube packaging.
Additional Information
Series: MetPak™ MP2RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Spacer |
| Packaging | Tube |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Color | Beige |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 96 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | Backplane |
| Connector Style | Futurebus+® |
| Contact Finish Thickness | 3.00µin (0.076µm) |
| Contact Layout, Typical | - |
| Number of Columns | - |
