MP2-S150-51M1-C-LR
CONN RCP FUTUREBUS+ 150P EDGE MTManufacturer: 3M
Categories: Specialized
Quality Control: Learn More

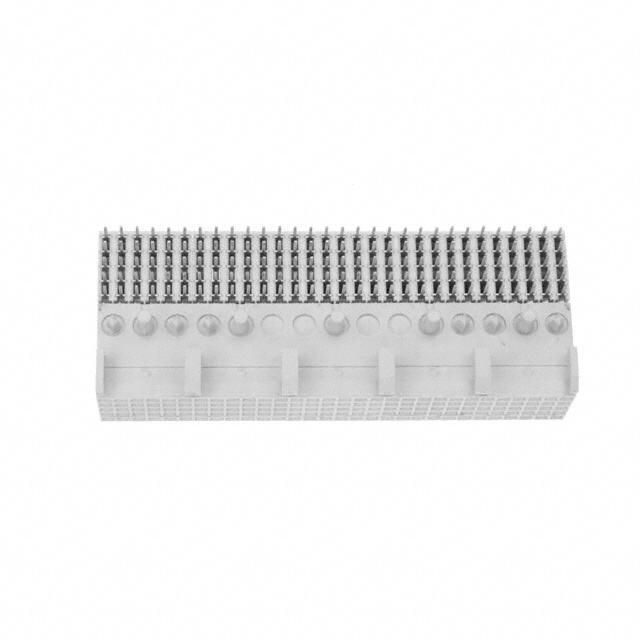

The 3M MetPak™ MP2 Series connector, part number MP2-S150-51M1-C-LR, is a 150-position receptacle designed for Futurebus+® applications. This board edge connector features female sockets with a right-angle, through-hole termination for solder attachment. The beige colored component offers a 2.00mm pitch and is equipped with board guide, board lock, and spacer features for robust mechanical integration. Its contact finish is gold with a 3.00µin thickness, ensuring reliable electrical performance. This connector is commonly utilized in telecommunications and high-performance computing systems.
Additional Information
Series: MetPak™ MP2RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Board Lock, Spacer |
| Packaging | Tube |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Color | Beige |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 150 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | Backplane |
| Connector Style | Futurebus+® |
| Contact Finish Thickness | 3.00µin (0.076µm) |
| Contact Layout, Typical | - |
| Number of Columns | - |
