MP2-S090G-51M1-C-KR
CONN RCPT FUTUREBUS+ 90P EDGE MTManufacturer: 3M
Categories: Specialized
Quality Control: Learn More

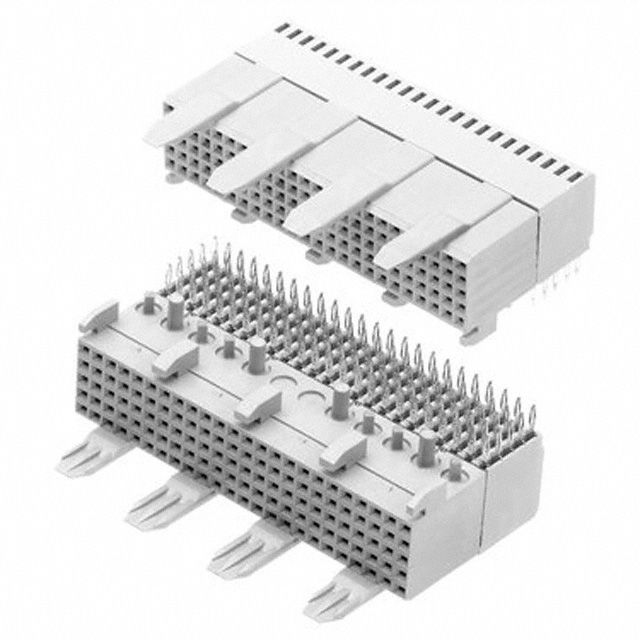

The 3M MetPak™ MP2 series connector, part number MP2-S090G-51M1-C-KR, is a 90-position right-angle receptacle designed for board edge mounting. This Futurebus+® compliant connector features female sockets with a 2.00mm pitch and a through-hole termination for soldering. The contact finish is gold with a thickness of 30.0µin, ensuring reliable conductivity. Key features include board guides, board locks, and spacers for robust mechanical connection. This component is suitable for backplane applications within telecommunications, networking, and industrial automation sectors. The connector is beige in color and supplied in bulk packaging.
Additional Information
Series: MetPak™ MP2RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Board Lock, Spacer |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Color | Beige |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 90 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | Backplane |
| Connector Style | Futurebus+® |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | - |
| Number of Columns | - |
