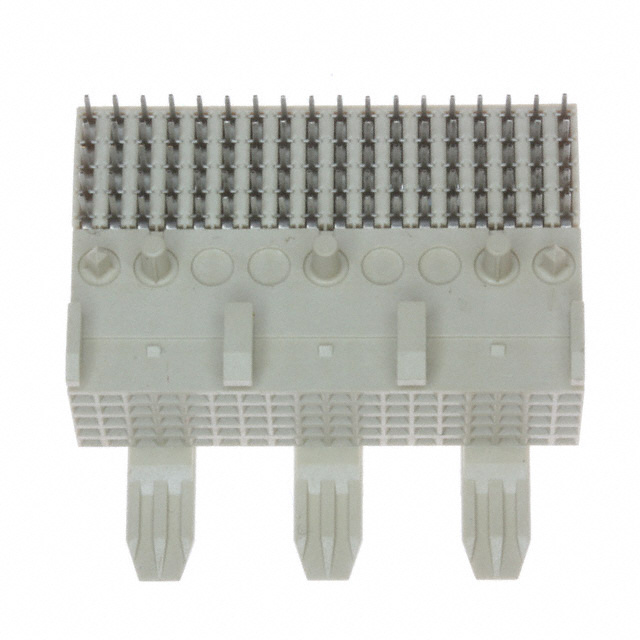

MP2-S090-51M1-C-LR
CONN RCPT FUTUREBUS+ 90P EDGE MTManufacturer: 3M
Categories: Specialized
Quality Control: Learn More
The 3M MetPak™ MP2 series offers the MP2-S090-51M1-C-LR, a 90-position female receptacle connector designed for board edge mounting. This right-angle, through-hole component features a beige, Futurebus+® style connection with gold-plated contacts offering a 3.00µin (0.076µm) finish. Key features include board guides, board locks, and spacers for enhanced system integrity. The 2.00mm pitch ensures high-density connectivity, suitable for demanding backplane applications. This component is utilized in telecommunications, data processing, and high-performance computing sectors.
Additional Information
Series: MetPak™ MP2RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Board Lock, Spacer |
| Packaging | Tube |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Color | Beige |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 90 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | Backplane |
| Connector Style | Futurebus+® |
| Contact Finish Thickness | 3.00µin (0.076µm) |
| Contact Layout, Typical | - |
| Number of Columns | - |
