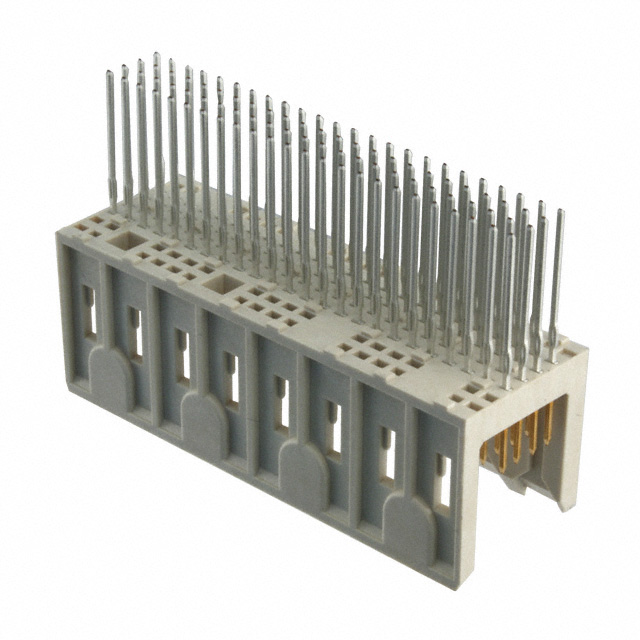

MP2-H096-41P5-S-KR
CONN HEADER FUTUREBUS+ 96POS PCBManufacturer: 3M
Categories: Specialized
Quality Control: Learn More
3M MetPak™ MP2 series connector header, part number MP2-H096-41P5-S-KR. This 96-position, 4-row Futurebus+® compliant connector features male pins with a gold contact finish, 30.0µin (0.76µm) thickness, and a 0.079" (2.00mm) pitch. Designed for through-hole mounting, this beige connector utilizes press-fit termination and includes board guide and mating guide features for enhanced assembly. Its backplane connector usage is suitable for high-density interconnect applications in telecommunications, computing, and industrial automation.
Additional Information
Series: MetPak™ MP2RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Mating Guide |
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Color | Beige |
| Mounting Type | Through Hole |
| Number of Positions | 96 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | Futurebus+® |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | - |
| Number of Columns | - |
