HM-PWR-HDR-08-LR
CONN HEADER BLADE PWR 3P EDGE MTManufacturer: 3M
Categories: Specialized
Quality Control: Learn More
3M HM-PWR-HDR-08-LR is a right-angle, through-hole mounted blade power header designed for board edge applications. This male blade connector features a 3-position, single-row configuration, with all positions loaded. The contacts are finished with 3.00µin of gold plating, ensuring reliable conductivity. Incorporating board guide features, this header facilitates precise alignment during assembly. The termination method is press-fit, offering a robust mechanical and electrical connection. This component is commonly utilized in industrial and automotive power distribution systems.
Additional Information
Series: HM-PWR-HDRRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Bulk |
| Connector Type | Header, Male Blades |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 3 |
| Pitch | - |
| Number of Rows | 1 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Blade Power |
| Contact Finish Thickness | 3.00µin (0.076µm) |
| Contact Layout, Typical | 3 Power |
| Number of Columns | - |
Request a Quote
Clients Also Buy

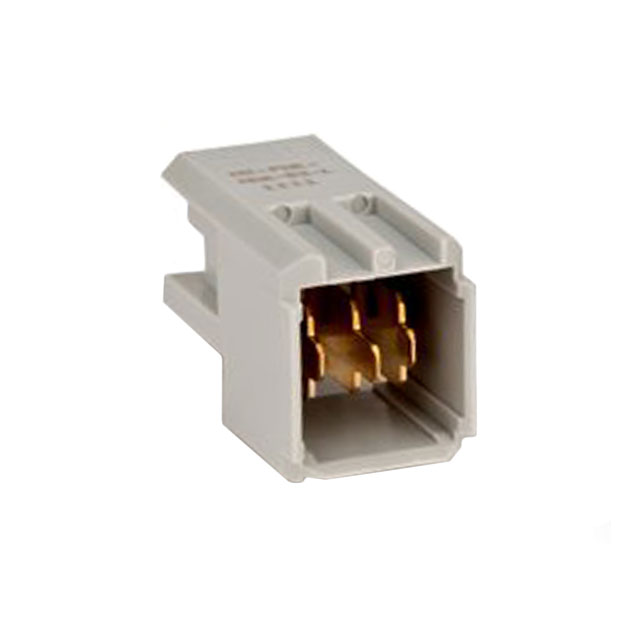

HM-PWR-HDR-02-LR
