HDC-S140-41S2-KR
CONN RCPT HD 140POS PCBManufacturer: 3M
Categories: Specialized
Quality Control: Learn More

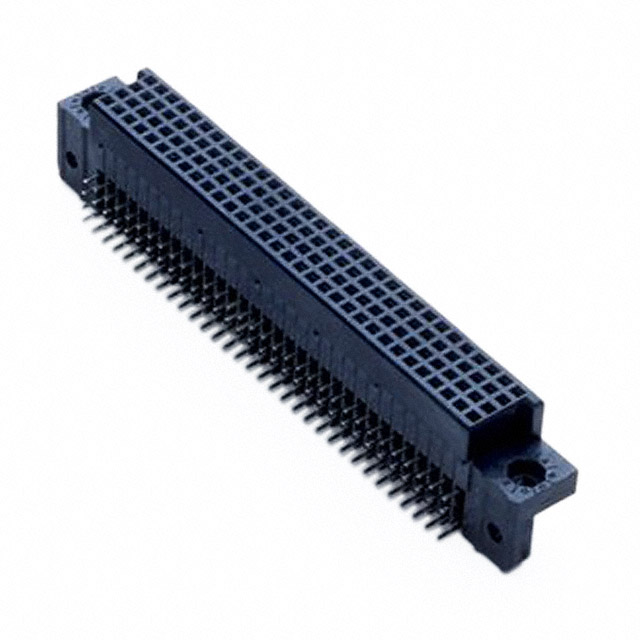

3M HDC Series 140-position receptacle with female sockets. This right-angle, through-hole mounted connector features a black housing and a 0.100" (2.54mm) pitch. The gold contact finish, with a thickness of 30.0µin (0.76µm), ensures reliable performance. Designed for high-density applications within the HDC, HDI, and HPC connector families, this component is suitable for use in industrial automation, medical equipment, and telecommunications infrastructure. The HDC-S140-41S2-KR is supplied in bulk packaging.
Additional Information
Series: HDC (High Density Connector)RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 140 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | High Density (HDC, HDI, HPC) |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | - |
| Number of Columns | - |
