1P02-1110-AS
CONN PWR MOD MTCA 96POS PCBManufacturer: 3M
Categories: Specialized
Quality Control: Learn More

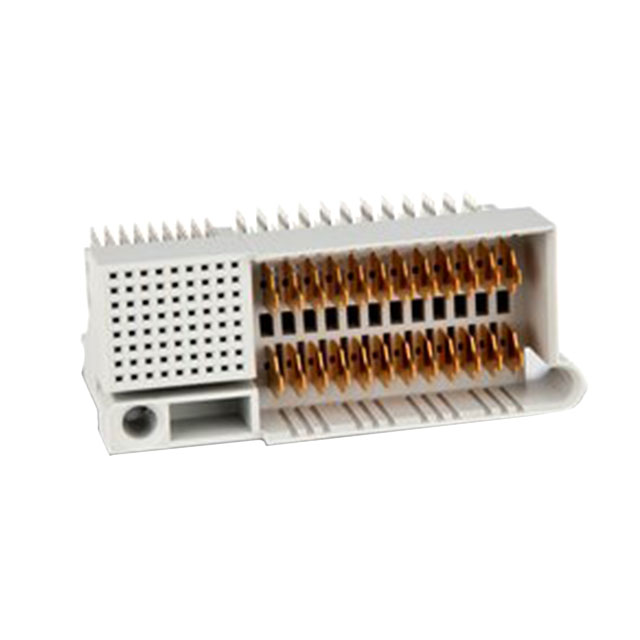

3M 1P02 Series Power Module Connector, part number 1P02-1110-AS, is a 96-position through-hole component designed for MicroTCA™ applications. This gray connector features female sockets and male blades, with a contact finish of gold, 30.0µin (0.76µm). The layout typically includes 72 signal and 24 power contacts, enhanced with a guide pin for proper alignment. Termination is achieved via press-fit. This robust connector is commonly found in telecommunications infrastructure, data center equipment, and high-performance computing systems, where reliable power delivery and signal integrity are critical. It is supplied in tray packaging.
Additional Information
Series: 1P02RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Guide Pin |
| Packaging | Tray |
| Connector Type | Power Module, Female Sockets and Male Blades |
| Contact Finish | Gold |
| Color | Gray |
| Mounting Type | Through Hole |
| Number of Positions | 96 |
| Pitch | - |
| Number of Rows | - |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | MicroTCA™ |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 72 Signal, 24 Power |
| Number of Columns | - |
