1P01-1110-AS
CONN PWR MOD MTCA 96POS EDGE MNTManufacturer: 3M
Categories: Specialized
Quality Control: Learn More

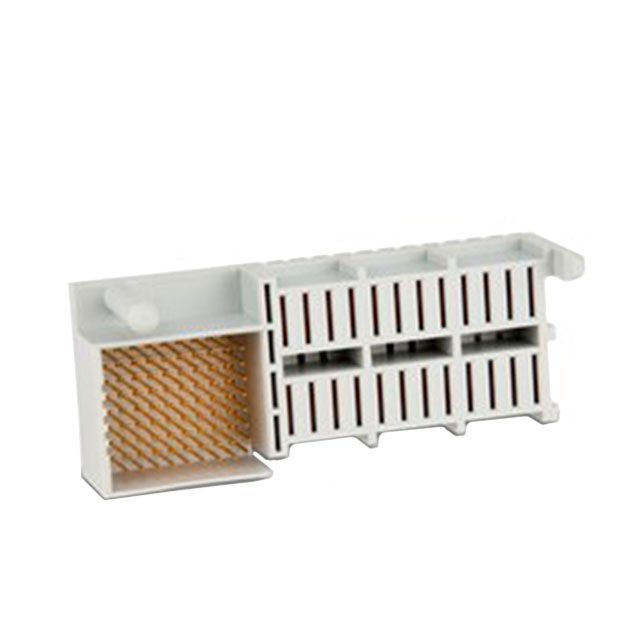

The 3M 1P01-1110-AS is a 96-position MicroTCA™ power module connector designed for board edge mounting. This right-angle, through-hole component features a gray housing with male pins and female blades, utilizing a press-fit termination. The contact finish is gold with a thickness of 30.0µin (0.76µm). This connector is engineered with a mating guide for robust interconnection. It supports 72 signal and 24 power contacts, all loaded. This component is commonly found in telecommunications infrastructure and high-performance computing applications. The 3M 1P01 series offers reliable power and signal delivery for demanding system architectures.
Additional Information
Series: 1P01RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mating Guide |
| Packaging | Tray |
| Connector Type | Power Module, Male Pins and Female Blades |
| Contact Finish | Gold |
| Color | Gray |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 96 |
| Pitch | - |
| Number of Rows | - |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | MicroTCA™ |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 72 Signal, 24 Power |
| Number of Columns | - |
