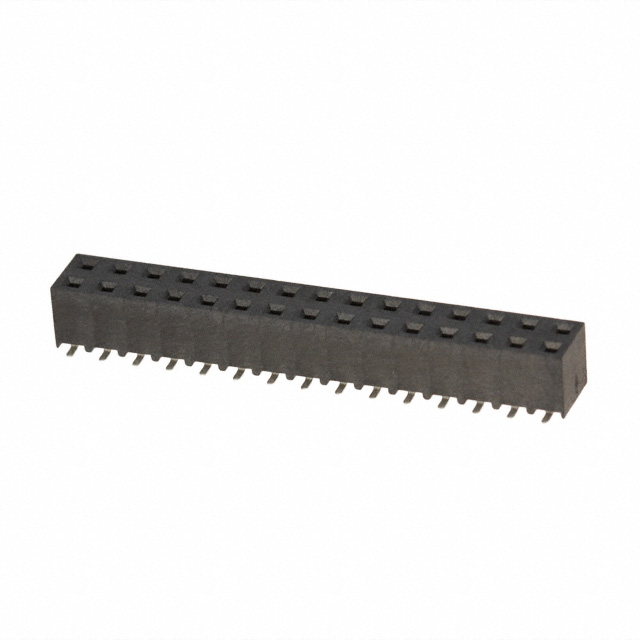

966230-2000-AR-PR
CONN RCPT 30POS 0.1 GOLD SMDManufacturer: 3M
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
30 Position Receptacle, Bottom or Top Entry Connector 0.100"" (2.54mm) Surface Mount Gold
Additional Information
Series: 966RoHS Status: Request inventory verificationManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Pick and Place |
| Packaging | Tape & Reel (TR) |
| Connector Type | Receptacle, Bottom or Top Entry |
| Voltage Rating | 1000VDC |
| Current Rating (Amps) | 2A |
| Mounting Type | Surface Mount |
| Number of Positions | 30 |
| Style | Board to Board |
| Operating Temperature | -25°C ~ 105°C |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | FLASH |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Insulation Height | 0.197"" (5.00mm) |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Number of Rows | 2 |
