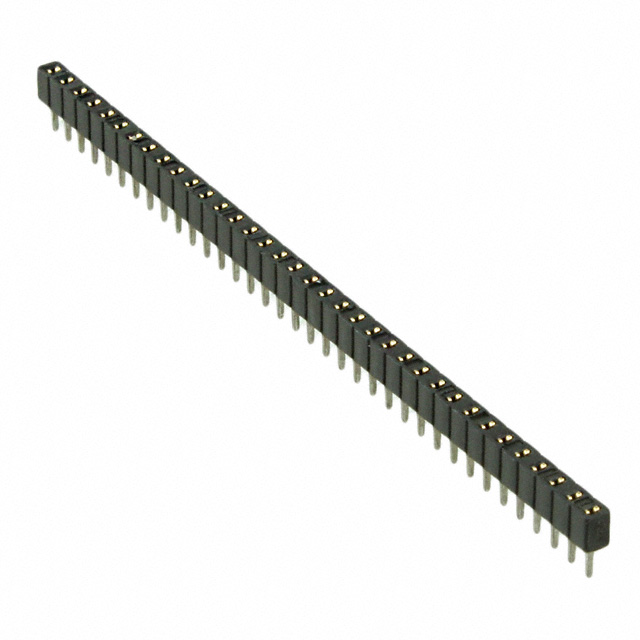

929984-01-36-RK
CONN RCPT 36POS 0.1 TIN PCBManufacturer: 3M
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
36 Position Receptacle Connector 0.100"" (2.54mm) Through Hole Tin
Additional Information
Series: 929RoHS Status: Request inventory verificationManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Voltage Rating | 1000V |
| Current Rating (Amps) | 1A |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.125"" (3.18mm) |
| Insulation Height | 0.150"" (3.81mm) |
| Row Spacing - Mating | - |
| Number of Rows | 1 |
