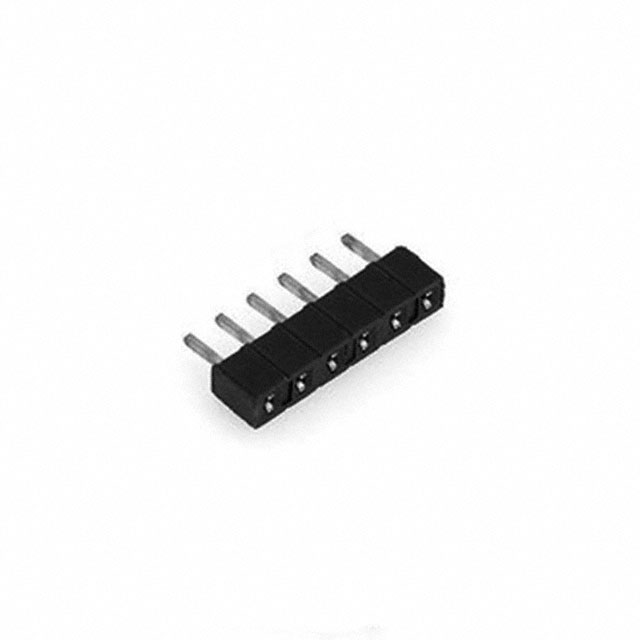

929984-01-06
CONN RCPT 6POS 0.1 TIN-LEAD PCBManufacturer: 3M
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
The 3M 929 Series receptacle connector, part number 929984-01-06, is a 6-position, single-row component designed for through-hole mounting. It features a 0.100" (2.54mm) pitch with a tin-lead contact finish for both mating and post surfaces, providing reliable solder termination. This board-to-board connector has a current rating of 1A and a voltage rating of 1000V, operating within a temperature range of -40°C to 105°C. The insulation material is UL94 V-0 rated. This component is commonly utilized in industrial automation and consumer electronics applications where robust and dependable interconnects are critical.
Additional Information
Series: 929RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Voltage Rating | 1000V |
| Current Rating (Amps) | 1A |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | 0.125"" (3.18mm) |
| Insulation Height | 0.150"" (3.81mm) |
| Row Spacing - Mating | - |
| Number of Rows | 1 |
