929975-01-22
3M BOARDMOUNT SOCKET .100 IN, .1Manufacturer: 3M
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More

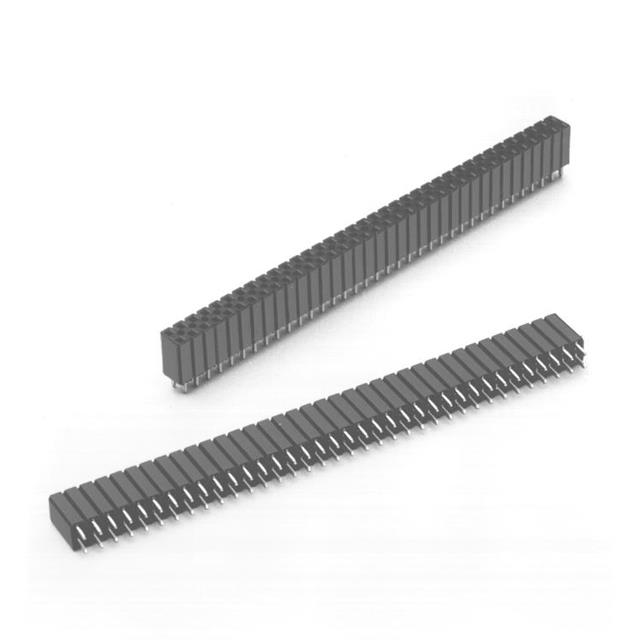

The 3M 929 Series receptacle connector, part number 929975-01-22, is a 44-position, dual-row, through-hole mounted component designed for board-to-board applications. Featuring a 0.100" (2.54mm) pitch and a 0.100" (2.54mm) row spacing, this connector utilizes forked contacts with a Tin-Lead plating offering 100.0µin (2.54µm) thickness for mating surfaces and post termination. The component boasts a 2A current rating and a 1500V voltage rating, operating within a temperature range of -40°C to 105°C. Its insulation is black with a UL94 V-0 flammability rating and an insulation height of 0.325" (8.25mm). This robust connector is suitable for use in industries such as telecommunications and industrial automation. It is supplied in bulk packaging.
Additional Information
Series: 929RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Voltage Rating | 1500V |
| Current Rating (Amps) | 2A |
| Mounting Type | Through Hole |
| Number of Positions | 44 |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | 0.125"" (3.18mm) |
| Insulation Height | 0.325"" (8.25mm) |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Number of Rows | 2 |
