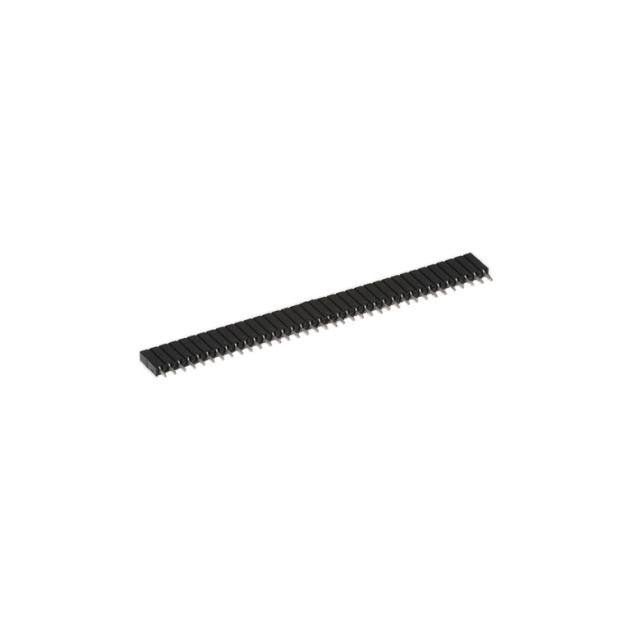

929974-01-36
CONN RCPT 36POS 0.1 TIN-LEAD PCBManufacturer: 3M
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
The 3M 929 Series receptacle connector, part number 929974-01-36, offers a 36-position single-row configuration with a 0.100" (2.54mm) pitch. This through-hole mounting component features tin-lead contact finish for both mating and post connections, with a mating contact thickness of 100.0µin (2.54µm). The forked contact type and a 2A current rating, coupled with a 1500V voltage rating, make it suitable for demanding applications. Constructed with UL94 V-0 rated insulation in black, it operates within a -40°C to 105°C temperature range. The push-pull fastening type and board-to-board style are key design elements. This component is commonly utilized in aerospace, industrial, and telecommunications sectors.
Additional Information
Series: 929RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Voltage Rating | 1500V |
| Current Rating (Amps) | 2A |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | 0.125"" (3.18mm) |
| Insulation Height | 0.325"" (8.25mm) |
| Row Spacing - Mating | - |
| Number of Rows | 1 |
