929852-01-24-10
3M BOARDMOUNT SOCKET, 929 SERIESManufacturer: 3M
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More

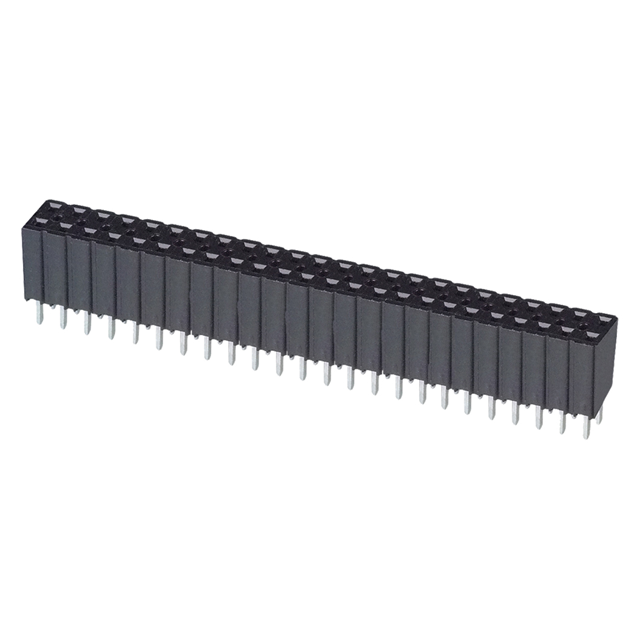

The 3M 929 Series 929852-01-24-10 is a 48-position receptacle connector designed for through-hole mounting. It features a 0.100" (2.54mm) pitch and row spacing, with a gold contact finish for mating surfaces, offering a mating contact thickness of 10.0µin (0.25µm). The connector utilizes a forked contact type and has a current rating of 2A. Termination is via solder, with a post contact finish of Tin-Lead. The connector's construction includes a Black insulation color and meets UL94 V-0 material flammability rating. Operating temperature ranges from -40°C to 105°C. This component finds application in industries such as telecommunications, industrial control, and consumer electronics where reliable board-to-board interconnectivity is critical.
Additional Information
Series: 929RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Voltage Rating | 1500V |
| Current Rating (Amps) | 2A |
| Mounting Type | Through Hole |
| Number of Positions | 48 |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | 0.125"" (3.18mm) |
| Insulation Height | 0.325"" (8.25mm) |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Number of Rows | 2 |
