929852-01-03-10
CONN RCPT 6POS 0.1 GOLD PCBManufacturer: 3M
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More

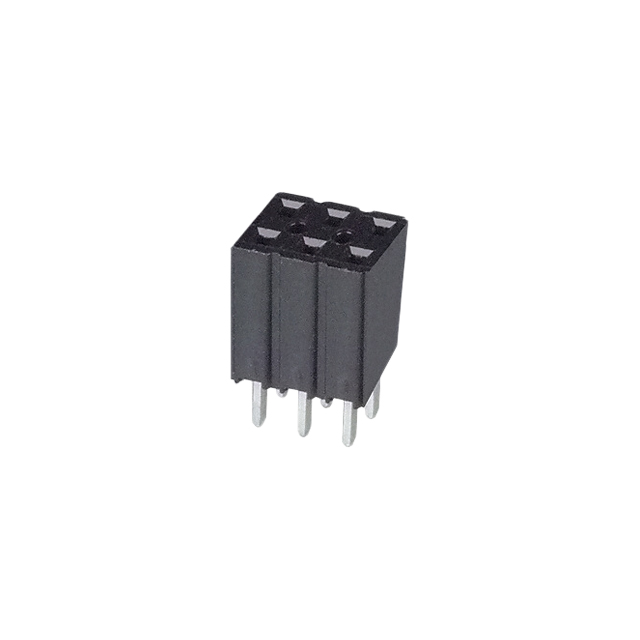

The 3M 929 Series 6-position receptacle connector, part number 929852-01-03-10, offers a 0.100" (2.54mm) pitch and a through-hole mounting style. This board-to-board connector features a forked contact type with gold mating contacts providing 10.0µin (0.25µm) thickness and tin-lead post contacts. Designed for reliable termination via solder, it boasts a current rating of 2A and a voltage rating of 1500V. The connector operates within a temperature range of -40°C to 105°C and is constructed with UL94 V-0 rated insulation. Its black insulated housing has an overall height of 0.325" (8.25mm). This component is suitable for applications in industrial automation and telecommunications.
Additional Information
Series: 929RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Voltage Rating | 1500V |
| Current Rating (Amps) | 2A |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | 0.125"" (3.18mm) |
| Insulation Height | 0.325"" (8.25mm) |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Number of Rows | 2 |
