929850-01-08-10
3M BOARDMOUNT SOCKET, 929 SERIESManufacturer: 3M
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More

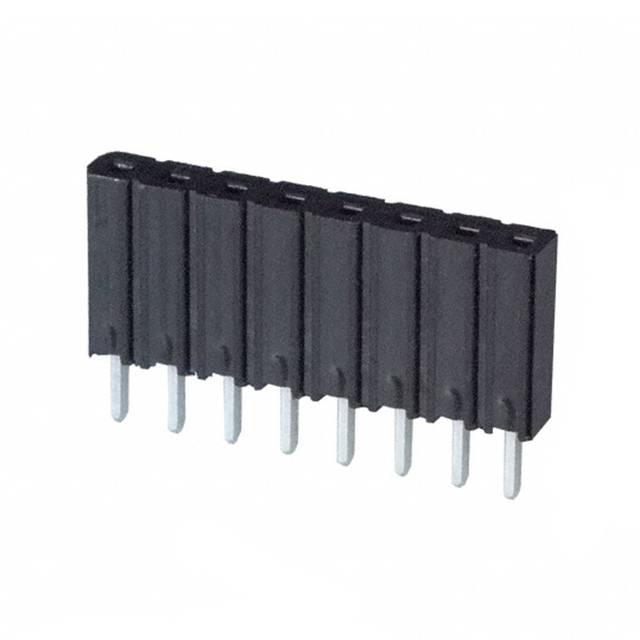

The 3M 929 Series receptacle connector, part number 929850-01-08-10, is an 8-position, single-row board-to-board connector designed for through-hole mounting. It features a 0.100" (2.54mm) pitch and utilizes forked contacts with gold plating for the mating interface, offering a contact finish thickness of 10.0µin (0.25µm) and a current rating of 2A. The post termination is tin-lead. This connector is constructed with UL94 V-0 rated insulation in black, with an insulation height of 0.325" (8.25mm). The contact post length is 0.125" (3.18mm). Operating temperature ranges from -40°C to 105°C, with a voltage rating of 1500V. This component is suitable for applications in industrial automation, telecommunications, and consumer electronics.
Additional Information
Series: 929RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Voltage Rating | 1500V |
| Current Rating (Amps) | 2A |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | 0.125"" (3.18mm) |
| Insulation Height | 0.325"" (8.25mm) |
| Row Spacing - Mating | - |
| Number of Rows | 1 |
