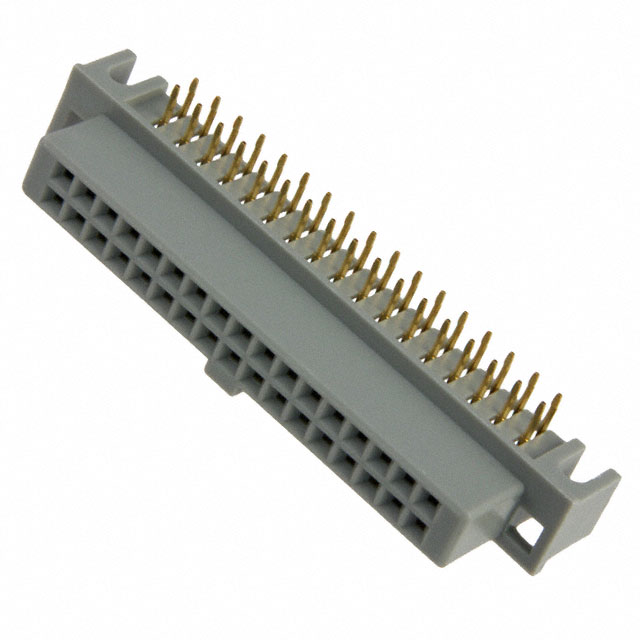

5134-B7A2PL
CONN RCPT 34POS 0.1 GOLD PCB R/AManufacturer: 3M
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
34 Position Receptacle Connector 0.100"" (2.54mm) Through Hole, Right Angle Gold
Additional Information
Series: 5100RoHS Status: Request inventory verificationManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mounting Flange, Polarizing Key |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Voltage Rating | 1000V |
| Current Rating (Amps) | 1A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 34 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Gray |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.102"" (2.60mm) |
| Insulation Height | 0.350"" (8.89mm) |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Number of Rows | 2 |
