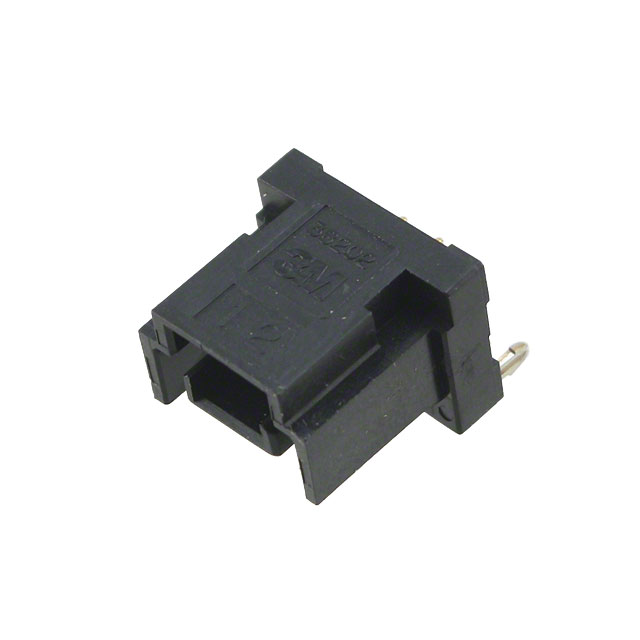

38202-62S3-000 PL
CONN RCPT 2POS 0.1 GOLD PCBManufacturer: 3M
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
2 Position Receptacle Connector 0.100"" (2.54mm) Through Hole Gold
Additional Information
Series: 382RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | Receptacle |
| Voltage Rating | 160V |
| Current Rating (Amps) | 5A |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -20°C ~ 70°C |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.100"" (2.54mm) |
| Insulation Height | 0.512"" (13.00mm) |
| Row Spacing - Mating | - |
| Number of Rows | 1 |
