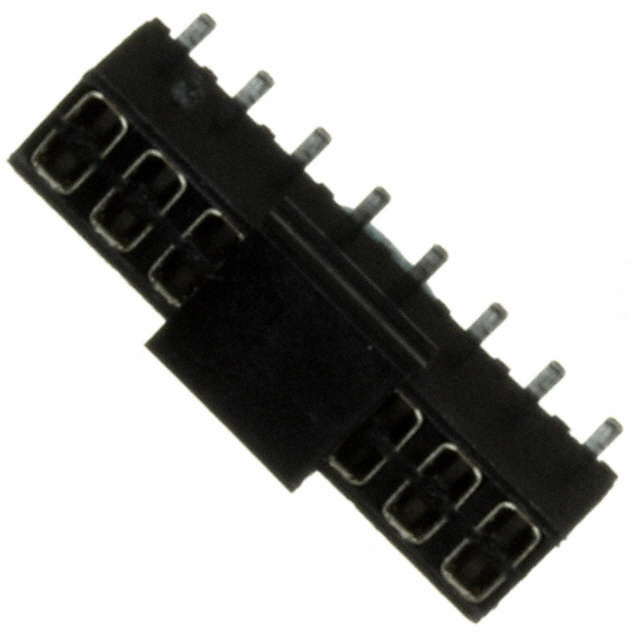

153216-2020-RB-WB
CONN RCPT 16POS 0.079 GOLD SMDManufacturer: 3M
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
16 Position Receptacle, Bottom or Top Entry Connector 0.079"" (2.00mm) Surface Mount Gold
Additional Information
Series: 1532RoHS Status: Request inventory verificationManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Pick and Place |
| Packaging | Tape & Reel (TR) |
| Connector Type | Receptacle, Bottom or Top Entry |
| Voltage Rating | 500VDC |
| Current Rating (Amps) | 1A |
| Mounting Type | Surface Mount |
| Number of Positions | 16 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.079"" (2.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Insulation Height | 0.129"" (3.28mm) |
| Row Spacing - Mating | 0.079"" (2.00mm) |
| Number of Rows | 2 |
Request a Quote
Clients Also Buy

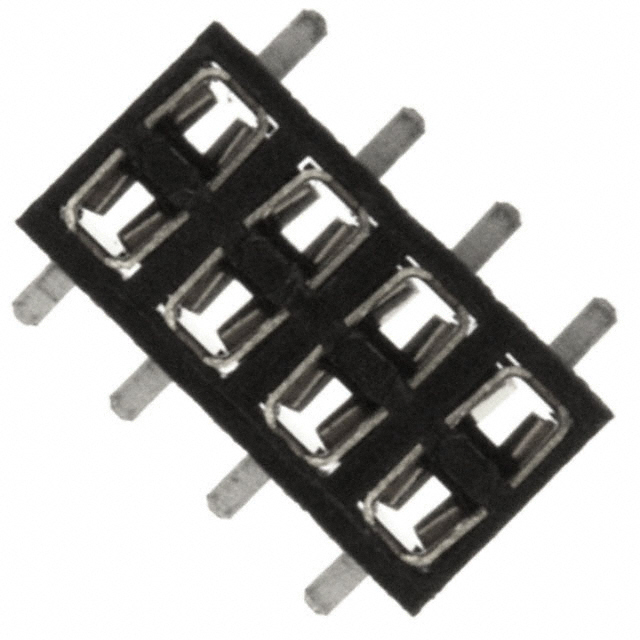

153208-2020-RB
