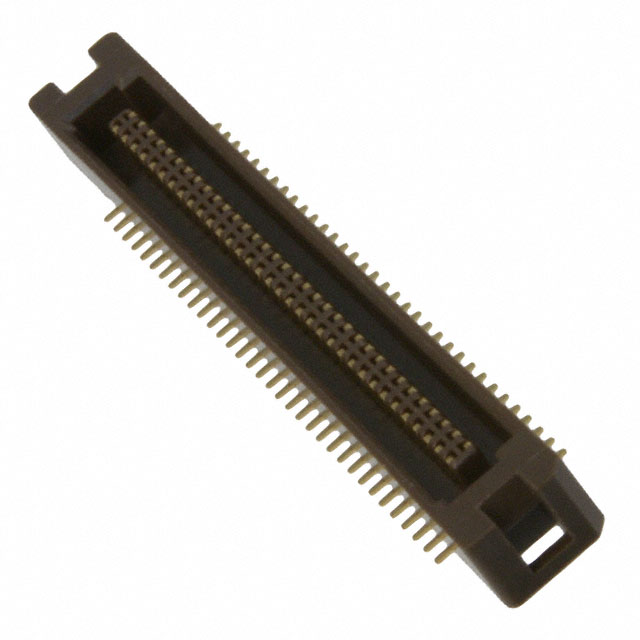

P50LE-068P1-SML-DA
CONN HEADER SMD 68POS 1.27MMManufacturer: 3M
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Surface Mount 68 position 0.050"" (1.27mm)
Additional Information
Series: Pak 50, P50LERoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tube |
| Connector Type | Plug |
| Voltage Rating | - |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Surface Mount |
| Number of Positions | 68 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 85°C |
| Contact Type | Center Strip Contact |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Brown |
| Pitch - Mating | 0.050"" (1.27mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | FLASH |
| Contact Finish - Post | Gold |
| Contact Shape | - |
| Contact Length - Post | - |
| Insulation Height | 0.197"" (5.00mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
