D2540-6V0C-AR-WG
CONN HEADER SMD 40POS 2.54MMManufacturer: 3M
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Surface Mount 40 position 0.100"" (2.54mm)
Additional Information
Series: D2500RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Keying Slot, Pick and Place |
| Packaging | Tape & Reel (TR) |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 1.75A |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.390"" (9.91mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.243"" (6.17mm) |
Request a Quote
Clients Also Buy

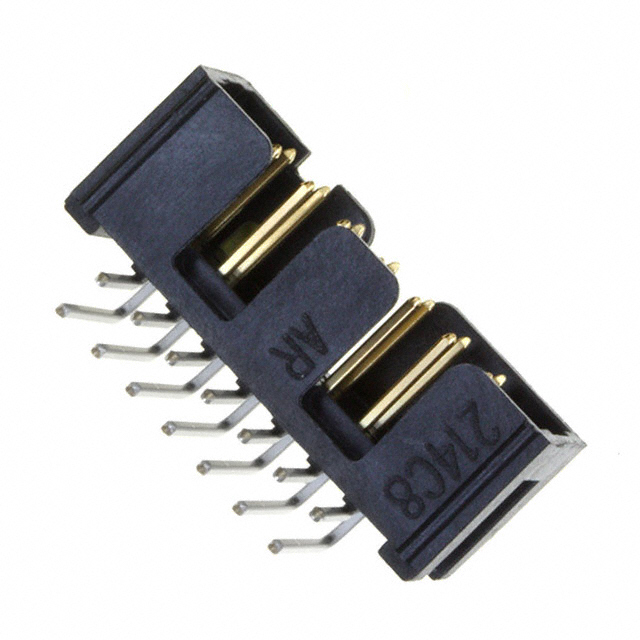

D2514-5002-AR
